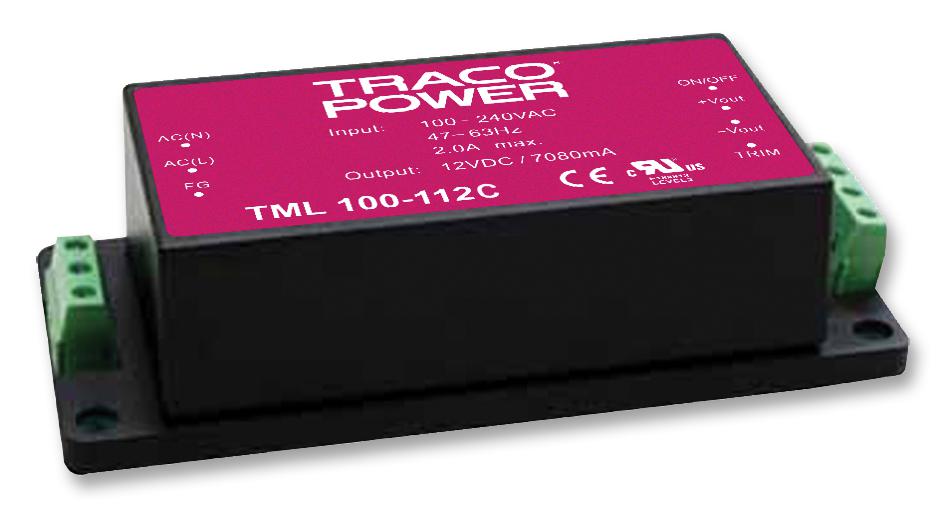

TRACO POWER TML100112C Power Supply Module
The TML 100C series power modules are compact 85-100 watt power supplies with a fully encapsulated plastic case, featuring active PFC, high efficiency up to 94.5%, and universal input 100-240 VAC. They include screw terminals for easy installation, offer remote on/off control, adjustable output voltage, and meet international safety and EMI standards. Suitable for energy-efficient applications, these modules provide high power factor, low leakage current, and are designed with protection class II considerations, ensuring reliability and safety across global markets.
TRACO POWER TML100112C Power Supply Module Specifications:
- Power Output: 85-100 Watts
- Output Voltage: 12 VDC, 15 VDC, 24 VDC, 48 VDC
- Output Current: 7000 mA / 5660 mA / 4200 mA / 2100 mA
- Efficiency: Up to 94.5%
- Input Voltage Range: 100-240 VAC (nominal), 90-264 VAC (full range), 120-370 VDC
- Input Frequency: 47-63Hz
- Leakage Current: 0.5 mA max.
- Ripple and Noise: 12 VDC max 120 mV, 24 VDC max 200 mV, 48 VDC max 240 mV
- Protection: Overvoltage, short circuit, automatic recovery
- Isolation Voltage: 3000 VAC
- Operating Temperature: 25°C to +70°C
- Humidity: Up to 95% non-condensing
- Dimensions: 154 mm x 93.2 mm x 38 mm
- Weight: 440 g
- Certifications: UL 60950-1, EN 55022, EN 61000-6-3, EN 55024
- Protection Class: II
Buy the Traco Power Series TML 100C 85-100 Watt: TML100-112C
Purchase the Traco Power TML100-112C power supply module online today. This highly reliable, energy-efficient 85-watt power source features active PFC, universal input 100-240 VAC, adjustable output voltage, and meets international safety standards. Designed for energy-related applications, it offers high efficiency up to 94.5%, low leakage current, and robust protection features including overvoltage and short circuit protection. Its compact size and screw terminal connection make installation straightforward, ensuring optimal performance and safety across various industrial and commercial environments.
Get Traco Power TML100-112C today—built for precision, energy efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TML100112C?
You can click on the BUY or RFQ button to purchase TML100112C from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TML100112C?
You can download the TML100112C datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TML100112C?
TRACO POWER
