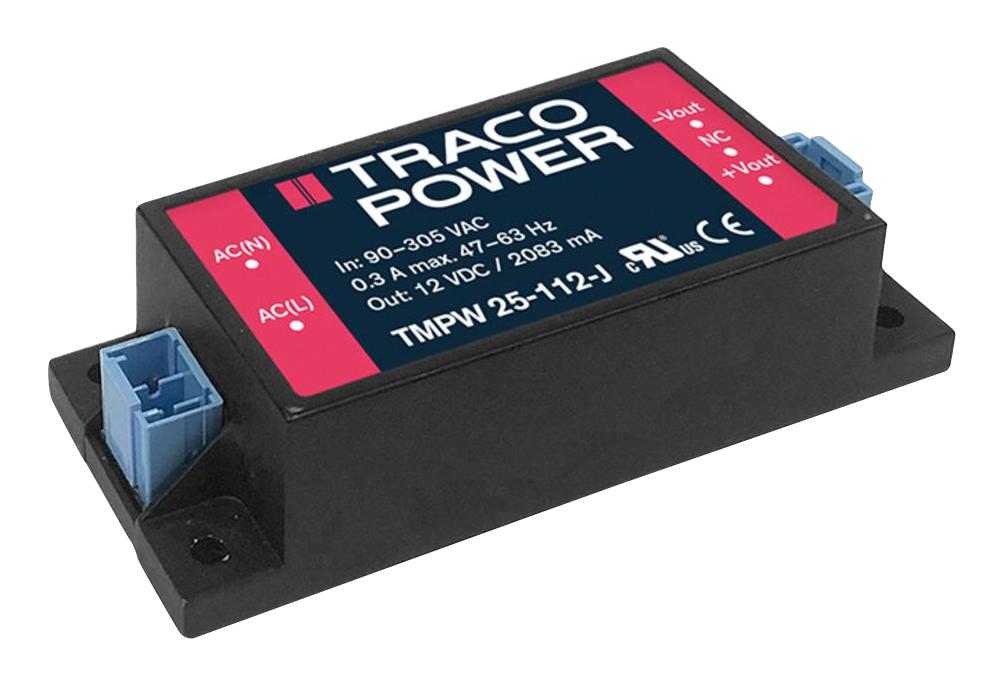

TRACO POWER TMPW25124J Power Supply Module
The TMPW 25-J Series is a compact 25 Watt AC/DC power supply designed for industrial and household applications. It features a wide input voltage range of 90-305 VAC, high efficiency up to 88%, and an internal EN 55032 class B filter to save space. The device offers reinforced insulation, low no-load power consumption (<0.1W), and a high operating temperature range of -40°C to +70°C. Certified for safety standards IEC/EN/UL 62368-1, it is suitable for various environments and protection Class II applications, making it ideal for reliable, energy-efficient electronic power needs.
TRACO POWER TMPW25124J Power Supply Module Specifications:
- Power Output: 25 W
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V
- Output Current: up to 3.922 A
- Input Voltage Range: 90 - 305 VAC, 100 - 250 VDC
- Input Frequency: 47 - 63 Hz
- Efficiency: up to 88%
- Operating Temperature: -40°C to +70°C
- Isolation Voltage: 4000 VAC
- Protection Class: II (Reinforced Insulation)
- Ripple and Noise: 150-240 mVp-p depending on model
- Dimensions: 3.48 x 1.08 inches
- Housing Material: Plastic resin UL 94 V-0 rated
- Weight: 100 g
- Certifications: IEC 62368-1, UL 62368-1, EN 60335-1
- Inrush Current: 60 A at 230 VAC
- Standby Power Consumption: <0.1W
Buy the Traco Power Series TMPW: 25 Watt AC/DC Power Supply - TMPW25124J
Purchase the Traco Power TMPW 25-J series power supply online today to enjoy high efficiency, wide input voltage range, and certified safety features. This 25-watt compact power module is ideal for industrial and household applications, offering reinforced insulation, low standby power consumption, and excellent regulatory compliance. Designed for durability and energy savings, this device ensures stable power delivery across various environments with a robust build and proven reliability. Order now for quick delivery and dependable performance in your projects.
Get Traco Power TMPW25124J today—built for energy-efficient performance and reliable operation in demanding environments.
