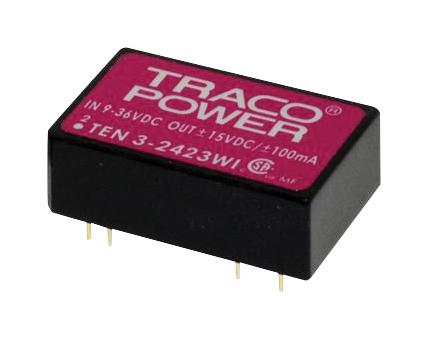

TRACO POWER TEN32423WI Industrial DC-DC Converter
The TEN 3WI series from Tracopower comprises 3W single and dual output DC-DC converters in a 24-pin DIP package. These converters feature a wide 4:1 input voltage range, automatic short circuit protection with indefinite recovery, current limiting, and internal filtering compliant with EN 55022-A and FCC Level A standards. They are suitable for battery-powered devices, distributed power systems in communication, instrumentation, and industrial electronics, where isolated and tightly regulated voltages are required. Options include input voltages of 24VDC or 48VDC, with output voltages of 3.3VDC, 5VDC, 12VDC, 15VDC, ±12VDC, or ±15VDC, and maximum output currents ranging from 200mA to 750mA. The converters offer efficiency up to 84%, operate within a temperature range of -40°C to +70°C at full load, and feature a typical PWM switching frequency of 350KHz. They provide an I/O isolation voltage of 1500VDC for 60 seconds, with an isolation capacitance of 380pF and resistance exceeding 1000 MΩ at 500VDC. Ripple and noise are limited to 75mV peak-to-peak over a 20MHz bandwidth. Certified according to cUL/UL 60950-1 and IEC/EN 60950-1 safety standards. Dimensions are 20.3mm x 10.2mm x 31.8mm (W x H x D), with a 3-year warranty.
TRACO POWER TEN32423WI Industrial DC-DC Converter Specifications:
- Power: 3W
- Input Voltage Range: 9-36VDC or 18-75VDC
- Output Voltages: 3.3V, 5V, 12V, 15V, ±12V, ±15V
- Output Current Max: 750mA
- Efficiency: up to 84%
- Isolation Voltage: 1500VDC for 60 sec.
- Isolation Capacitance: 380pF typ.
- Isolation Resistance: >1000 MΩ at 500VDC
- Ripple and Noise: 75mV peak-to-peak (20MHz bandwidth)
- Operating Temperature Range: -40°C to +70°C at full load
- Switching Frequency: 350KHz typ.
- Protection: Automatic short circuit, overvoltage, current limiting
- Dimensions: 20.3mm x 10.2mm x 31.8mm
- Potting Material: Epoxy
- Weight: 12g
- Safety Standards: UL 60950-1, IEC/EN 60950-1
- Environmental Compliance: RoHS, REACH
- Soldering Temperature Max: 265°C for 10 sec.
Buy the Tracopower TEN 3WI – Reliable Industrial DC-DC Converters for Power Applications
Purchase the Tracopower TEN 3WI series DC-DC converter online today to enjoy reliable, high-efficiency power conversion for industrial, communication, and instrumentation systems. With ultra-wide input voltage ranges, excellent load and line regulation, and built-in EMI filtering, these converters guarantee stable operation in demanding environments. Order now to benefit from a 3-year warranty, certifications, and optimal performance, making your projects safer and more efficient with minimal external components required.
Order your Tracopower Series TEN 3WI 3W converter today and ensure efficient, isolated power supply for industrial and communication projects.
