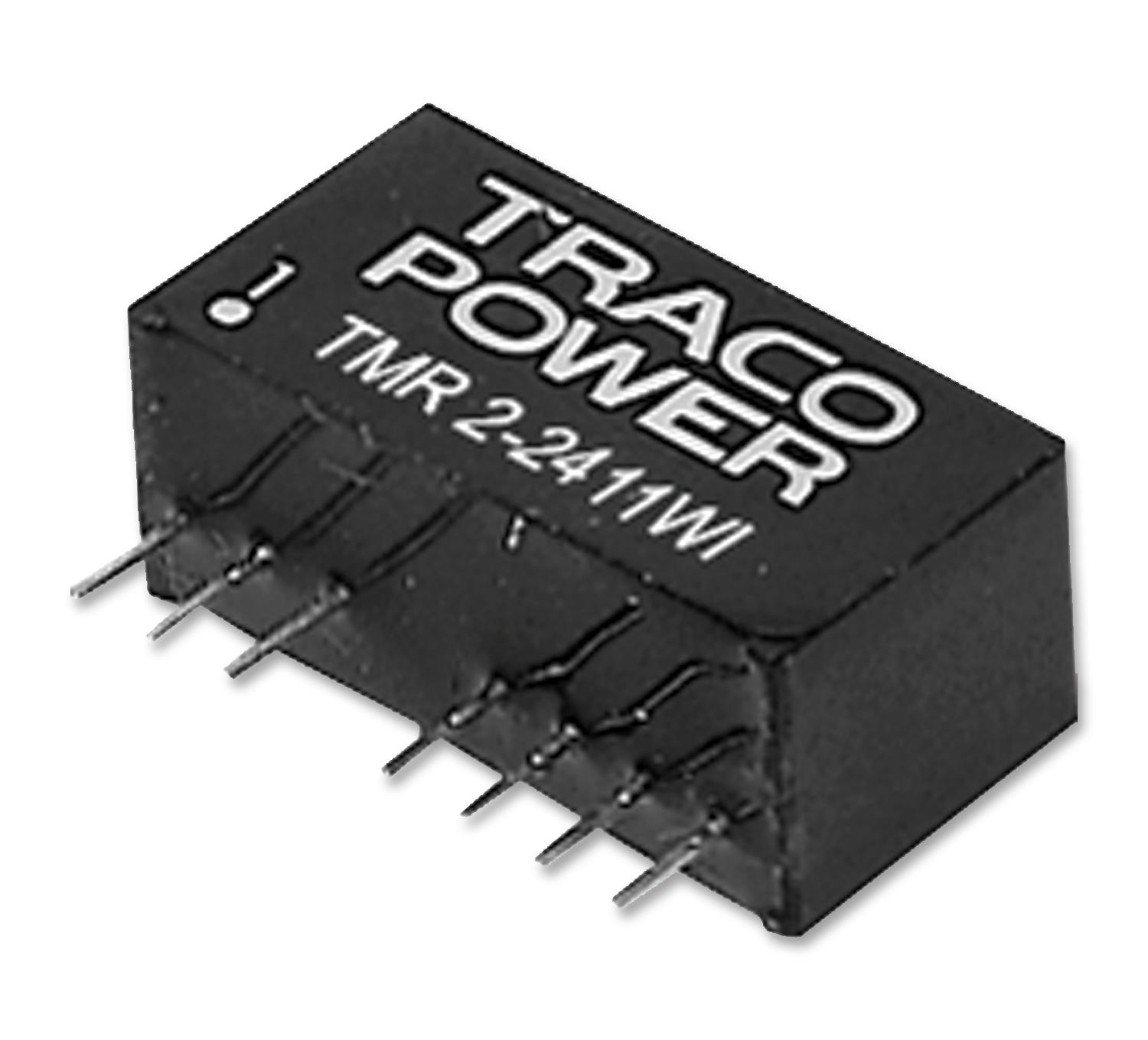

TRACO POWER TMR22423WI dc-dc converter
The TMR 2WI series comprises compact, 2-watt isolated DC/DC converter modules designed for space-critical applications. These converters feature ultra-wide input voltage ranges of 9-36 VDC or 18-75 VDC, with regulated outputs of 5V, 12V, 15V, or 3.3V, providing high efficiency up to 84%. Suitable for battery-powered devices, communication, industrial electronics, and distributed power systems, they offer excellent load & line regulation, remote On/Off, short circuit protection, and operate from -40°C to +75°C without derating. The SIP-9 package ensures easy integration in tight spaces.
TRACO POWER TMR22423WI dc-dc converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Voltages: 3.3V, 5V, 12V, 15V, 15VDC
- Output Current Max: 500mA to 200mA depending on model
- Efficiency: Up to 84%
- Operating Temperature Range: -40°C to +75°C
- Isolation Voltage: 1500 VDC
- Ripple & Noise: 50 mVpk-pk
- Short Circuit Protection: Automatic recovery
- Dimensions: SIP-9 package, compact size
- Switching Frequency: 100 to 650 kHz
- Humidity: 95% RH max, non-condensing
- Case Material: Non-conductive plastic, epoxy potting
- Weight: 6.5g
- MTBF: >1 million hours at 25°C
- Remote On/Off: Control pin with <0.6 VDC ON, 2.7-15 VDC OFF
Buy the Buy TracoPower DC/DC Converters Part Number TMR22423WI Online
Purchase the TracoPower TMR22423WI online for a reliable, efficient, and compact 2W isolated DC/DC converter ideal for industrial, communication, and electronic applications. Featuring ultra-wide input voltage ranges of 18-75 VDC, regulated outputs, high efficiency up to 84%, and operating temperatures from -40°C to +75°C, it ensures excellent performance in space-constrained environments. Remote On/Off control, short circuit protection, and a robust SIP-9 package make it suitable for demanding electronic systems and distributed power architectures. Enjoy quick, hassle-free online ordering today.
Buy TracoPower TMR22423WI now and experience unmatched reliability and performance for space-critical electronics.
