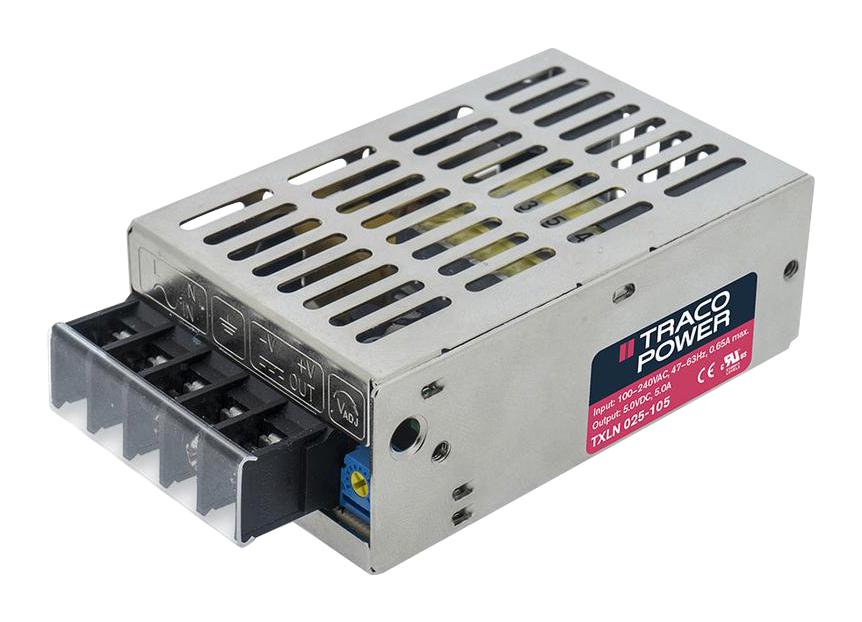

TRACO POWER TXLN025105 Industrial Power Supply
The TXLN 025 series is a family of compact, cost-effective power supplies crafted for industrial and automation applications. These units feature a robust metal case with screw terminal blocks, providing easy installation in various equipment. Offering universal AC input from 85 to 264 volts, they operate via convection cooling, ensuring no fan noise or maintenance. With efficiencies reaching up to 79%, they meet EN 61000-6-3, EN 61000-6-1, and safety standards including IEC/EN/UL 62368-1. Protective features include short circuit, overvoltage, and overload protection, making them reliable for critical applications. Its aluminum housing ensures durability, suitable operating temperatures are from -20°C to +70°C, and a switching frequency of approximately 70 kHz ensures smooth power delivery. Designed for Pollution Degree 2 environments, with a Protection Class I connection for safety, they are ideal for industrial automation, control systems, and cost-sensitive manufacturing setups. The 3-year warranty underscores their long-term reliability.
TRACO POWER TXLN025105 Industrial Power Supply Specifications:
- Input Voltage: AC 85-264 VAC, no certification for DC; DC 125-375 VDC (designed, no certification)
- Input Frequency: 47-63 Hz
- Output Power: 20 W to 25 W (depending on model)
- Output Voltage: 3.3 VDC (adjustable ±10%), other models include 5 V, 7.5 V, 30 V
- Output Current: Up to 6,000 mA depending on model
- Efficiency: Up to 88%
- Isolation Test Voltage: Input to Output 3,000 VAC, Input to Case/PE 4,500 VAC, Output to Case/PE 500 VAC
- Operating Temperature: -20°C to +70°C, derating above 50°C at 2.5%/K
- Protection: Short circuit, overvoltage (115-140% Vout), overload (105-180% Iout)
- Ripple & Noise: Max 150 mVp-p
- Switching Frequency: ~70 kHz
- Housing Material: Aluminum
- Connection Type: Screw terminal
- Dimensions: Approximate 80 x 40 x 25 mm
- Safety & Compliance: IEC/EN/UL 62368-1, EN 61000-6-3, EN 61000-6-1, EN 61000-3-2, EN 61000-3-3
- Protection Class: I, Pollution Degree: 2, OVC: II
Buy the Traco Power TXLN025105 – Reliable Power Supply for Industrial Applications
Purchase the Traco Power TXLN025105 power supply online today for reliable performance in industrial automation, control systems, and manufacturing. Its high efficiency up to 88% ensures energy savings, while the robust metal casing guarantees durability in harsh environments. With universal input voltage (85-264VAC), convection cooling, and safety features complying with IEC/EN/UL 62368-1 standards, it’s designed for long-term use. The power supply offers adjustable output voltage, overcurrent, overvoltage, and short circuit protection, making it a perfect choice for cost-sensitive projects requiring dependable power solutions. Buy now and enjoy a 3-year warranty with fast, secure online delivery.
Get Traco Power TXLN025105 today—built for precision, durability, and safe operation in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN025105?
You can click on the BUY or RFQ button to purchase TXLN025105 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN025105?
You can download the TXLN025105 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN025105?
TRACO POWER
