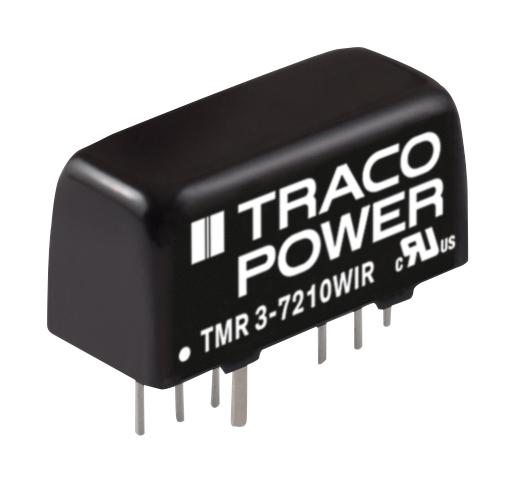

TRACO POWER TMR34812WIR DC/DC Converter
The TMR 3WIR series is a compact 3-watt DC/DC converter in a SIP-8 metal case, designed for space-limited applications. It features wide input voltage ranges, EN 50155 railway approval, UL 60950-1 certification, and robust protections including short circuit, current limiting, and isolation of 3000 VDC. Operating from -40°C to +90°C with derating, it offers fully regulated outputs, remote On/Off control, and high efficiency up to 83%. Suitable for industrial, railway, and automation systems requiring reliable power conversion in harsh environments.
TRACO POWER TMR34812WIR DC/DC Converter Specifications:
- Input voltage: 9-36 VDC, 18-75 VDC, 43-160 VDC, 4:1 wide input range
- Output voltage options: 3.3 V, 5 V, 9 V, 15 V, 24 V, 42 V, 48 V, 110 V, 160 V DC
- Output current: up to 700 mA depending on model
- Efficiency: up to 83%
- Operating temperature: -40°C to +90°C with derating above 78°C at 4.5%/K
- Isolation voltage: 3000 VDC input to output, 1500 VDC input/output to case
- Protections: Short circuit, current limiting, remote On/Off
- Surge voltage: up to 185 V max.
- Enclosure: Copper casing with silicone potting (UL94 V-0 rated)
- Dimensions: Standard SIP-8, compact size, weight approx. 5.9 grams
- Safety standards: IEC/EN/UL 60950-1, EN 50155 railway approval
- Switching frequency: 400 kHz typical
- Compliance: RoHS 2011/65/EU, REACH
Buy the Traco Power TMR34812WIR – Reliable DC/DC Converter for Industrial Applications
Enhance your power supply system with the Traco Power TMR series DC/DC converter. Its compact SIP-8 metal case, wide input voltage range, and high efficiency make it ideal for industrial, railway, and automation applications. With UL 60950-1 and EN 50155 certifications, it ensures safety and reliability in harsh environments. Features include robust protections, remote On/Off control, and operation from -40°C to +90°C with derating. Purchase online today to enjoy premium quality, space efficiency, and dependable power conversion performance for your critical systems.
Get Traco Power TMR34812WIR today—built for precision and long-lasting durability in demanding industrial environments.
