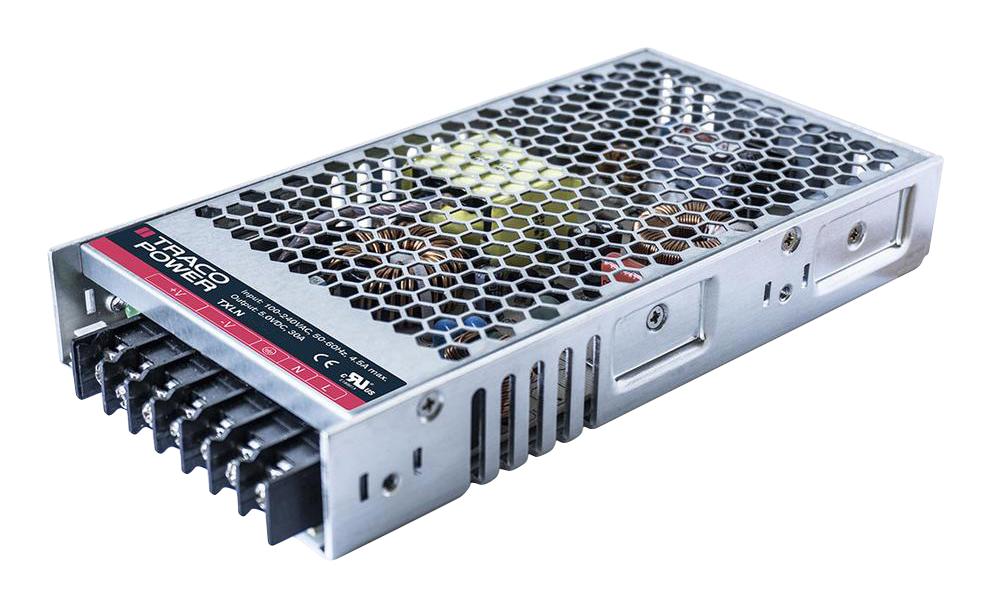

TRACO POWER TXLN150148 Power Supply Module
The TXLN 150 series is a family of encased power supplies suitable for cost-sensitive applications. Featuring a low-profile metal enclosure and screw terminal connections, these power supplies are easy to install in various equipment setups. They offer universal input voltage (85-264VAC) and comply with European EMC standards as well as the Low Voltage Directive (LVD). The units are convection-cooled (fanless), with high efficiency up to 90%, and meet safety standards including IEC/EN/UL 62368-1. They include protections against short circuits, overvoltage, and overload, and are designed for operation over temperatures from -30°C to +70°C. The aluminum housing and connection to protective earth (PE) enhance safety, with a pollution degree of PD 2 and overvoltage category OVC II. Power supplies in this series operate at a switching frequency of 61 to 69 kHz (PWM) and are covered by a 3-year warranty. They are suitable for applications requiring robust, reliable power solutions without active cooling.
TRACO POWER TXLN150148 Power Supply Module Specifications:
- Input Voltage: 85-264 VAC, 120-375 VDC
- Output Power: 150 W
- Output Voltage: 48 VDC (±10%)
- Output Current: 3,200 mA
- Efficiency: Up to 90%
- Protection: Short circuit, overvoltage, overload
- Operating Temperature: -30°C to +70°C
- Cooling: Convection cooled, fanless
- Safety Standards: IEC/EN/UL 62368-1
- Switching Frequency: 61 to 69 kHz
- Housing Material: Aluminum
- Connection: Screw terminal
- Certifications: CE, UL, EN 61000-6-3, EN 61000-6-1, EN 61000-3-2
- Protection Class: Class I, connection to PE
- Pollution Degree: PD 2
- Overvoltage Category: OVC II
- Insulation Test Voltage: Input to output 3,000 VAC
- Leakage Current: 1500 pA max at 264 VAC
- Reliability: 162,800 hours (MTBF)
Buy the Buy Traco Power Power Supply Part Number TXLN150148 Online
Secure your industrial automation projects with the Traco Power TXLN 150 watt power supply. Featuring a robust aluminum enclosure, universal input, and fanless convection cooling, it ensures long-lasting, efficient performance. Certified to meet IEC/EN/UL standards, this device offers overvoltage, overload, and short circuit protections. Easy to install with screw terminals, it operates across a wide temperature range from -30°C to +70°C. Order online now and ensure your equipment has a reliable, safe, and efficient power source built for demanding environments.
Get Traco Power TXLN150148 today—designed for high efficiency, safe operation, and reliable power delivery in industrial automation.
