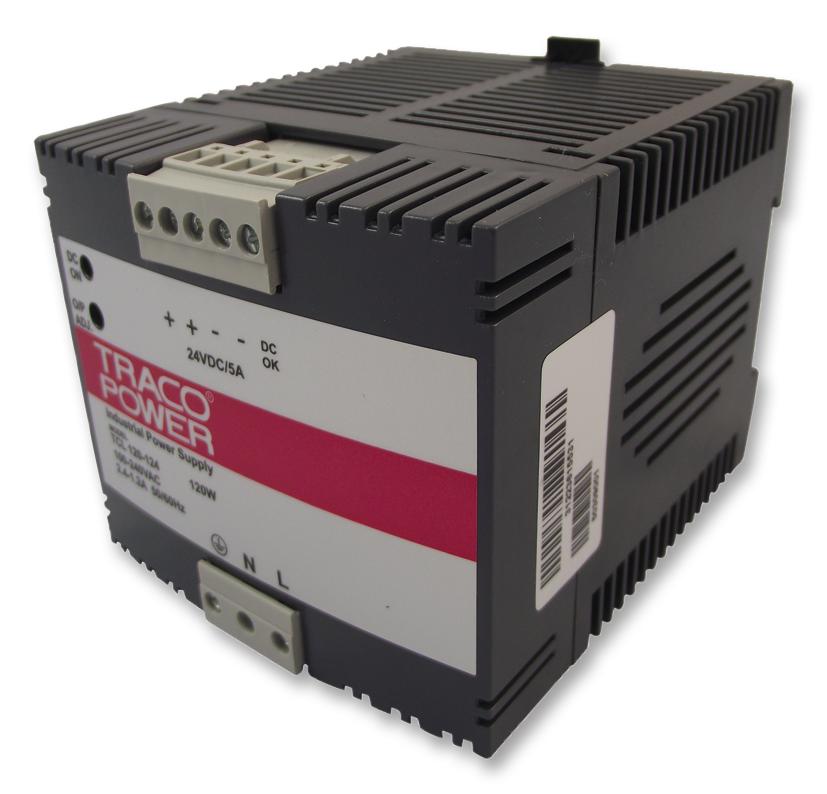

TRACO POWER TCL120124 industrial power supply
The TCL120124 is a reliable industrial power supply designed for industrial, office, and residential applications. It features a compact plastic housing, universal input of 85-264 VAC, and adjustable output voltage of 24-28 VDC. With high efficiency of 88% and low ripple and noise, it offers overload, short-circuit protection, and a Power OK signal for monitoring. The device supports parallel operation for increased current capacity, complies with major safety standards like UL and EN, and is mountable on DIN rails or via wall brackets, making it ideal for sensitive loads and demanding environments.
TRACO POWER TCL120124 industrial power supply Specifications:
- Input Voltage: 85-264 VAC, 85-375 VDC
- Input Frequency: 47-63 Hz
- Output Voltage: 24-28 VDC (adjustable)
- Output Current: 10A
- Power Output Max: 240W
- Ripple and Noise: <50 mV pk-pk
- Efficiency: 88% typical
- Protections: Overload, short-circuit, overvoltage
- Dimensions: Approx. 125 x 75 x 30 mm
- Mounting: DIN-rail snap-on, wall mounting with bracket
- Safety Standards: UL 60950-1, EN 60950-1, CB, CSA
- Temperature Range: 0°C to +70°C Operating
- Housing Material: Plastic (94V-0 rated)
- Certifications: UL, CSA, CE, CB
- Humidity Max: 95% non-condensing
Buy the Traco Power TCL120124 – Reliable Adjustable Power Supply for Industrial Applications
Purchase the Traco Power TCL120124 online today to secure a dependable and high-performance power supply ideal for industrial, control, or sensitive electronic applications. With adjustable 24-28 VDC output, high efficiency of 88%, and comprehensive safety approvals including UL and EN, it offers a compact, lightweight, and reliable solution. Its features such as overload, short-circuit protection, and optional parallel operation make it suitable for demanding environments. Easy to mount on DIN rails or wall, ensuring flexible installation and long-term reliability for your projects.
Order your Traco Power TCL120124 power supply today and ensure reliable, efficient performance for demanding industrial projects with adjustable output features.
