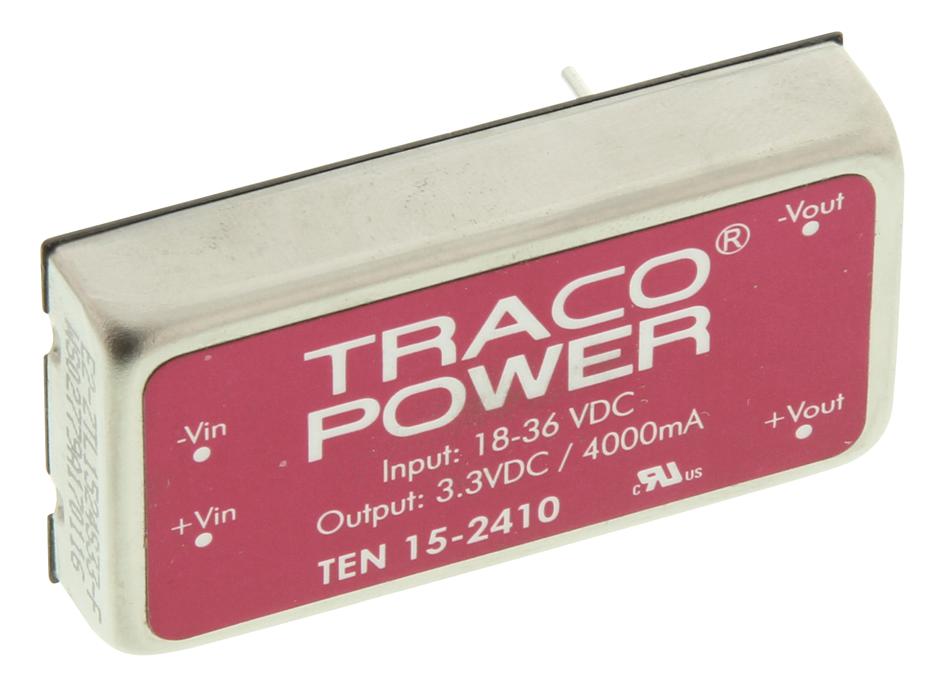

TRACO POWER TEN152410 DC/DC Converter
The TEN 15 series provides high-performance 15W DC/DC converters in a compact 2-inch by 1-inch low-profile metal case with insulated baseplate. These converters feature a wide input voltage range, high efficiency up to 88%, and an extended operating temperature from -40°C to +85°C. Built-in EMI filters ensure compliance with EN 55022, Class A, and FCC Level A, with features like short-circuit and over-voltage protection, making them suitable for battery-powered devices, instrumentation, communication, and industrial electronics requiring isolated, regulated voltages.
TRACO POWER TEN152410 DC/DC Converter Specifications:
- Input Voltage Range: 3.3 VDC to 36 VDC, 48 VDC nominal models
- Output Voltage: 3.3 V, 5 V, 9-18 V, 12 V, 15 V, +5 V, +12 V, +15 V
- Output Current: 500 mA to 4000 mA depending on model
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +85°C with derating above 60°C or 70°C depending on model
- Isolation Voltage: 1600 VDC
- Ripple & Noise: 50-75 mVpk-pk
- Switching Frequency: 300-500 kHz
- Short Circuit Protection: Continuous, automatic recovery
- Over Voltage Protection: Yes, varies by output
- Dimensions: 2” x 1” x 0.5” (approximate)
- Casing Material: Copper nickel-plated, epoxy potting
- Weight: 27 g
- Certifications: UL 60950-1, EN 60950-1, IEC 60950-1, RoHS, Reach
- Isolation Resistance: >1 G Ohm
- Insulation Capacitance: 300 pF max
- Thermal Impedance: Natural convection 12°C/W
Buy the Adis Series TEN 15 15 Watt Power Converter: TEN152410
Purchase the Adis TEN 15 152410 DC/DC converter online today and enjoy a high-efficiency, reliable power solution ideal for industrial, instrumentation, and communication applications. This 15W converter features a wide input voltage range, an extended temperature operation up to 85°C, and built-in EMI filtering to meet EN 55022, Class A standards without external components. Its compact size, high efficiency, and robust protections make it the perfect choice for engineers seeking a dependable, space-saving power conversion device for demanding environments, enhanced with a 3-year warranty.
Buy Adis TEN 15 152410 now and experience unmatched reliability and performance in powering industrial and communication systems reliably.
Frequently Asked Questions
Where can I buy TRACO POWER TEN152410?
You can click on the BUY or RFQ button to purchase TEN152410 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN152410?
You can download the TEN152410 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN152410?
TRACO POWER
