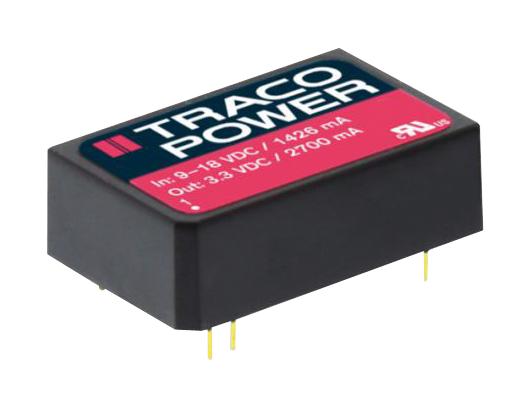

TRACO POWER TRI102413 High Isolation DC/DC Converter
The TRI 10 series offers a high isolation, 10-watt DC/DC converter designed for industrial, transportation, and instrumentation applications. Featuring reinforced isolation withstanding test voltages up to 9000 VDC, this series ensures safety and reliability. It operates efficiently with up to 88% efficiency, supports a wide input voltage range of 9-75 VDC, and is protected against overload, overvoltage, and short circuits. Its compact DIP-24 package integrates an EN 55032 Class A filter, reduces no-load power consumption, and performs reliably from -40°C to +85°C, making it ideal for demanding environments.
TRACO POWER TRI102413 High Isolation DC/DC Converter Specifications:
- Input Voltage Range: 9-75 VDC
- Output Power: 10 Watts
- Efficiency: up to 88%
- Isolation Voltage: 9000 VDC (test), 7071 VDC (working)
- Operating Temperature: -40°C to +85°C
- Protection: Overload, Overvoltage, Short circuit
- Dimensions: DIP-24 package
- Common Mode Transient Immunity: 15 kV/ps
- No-load Power Consumption: 144-288 mW
- Certifications: IEC 62368-1, UL 62368-1
- Ripple and Noise: 50-70 mVp-p
- Start-up Time: 30-60 ms
- Isolation Resistance: 10^8 MΩ
- Humidity: Up to 95% non-condensing
- Cooling: Natural convection
- Insulation System: Reinforced insulation
Buy the Traco Power TRI102413 – Reliable High Isolation DC/DC Converter for Industrial Applications
Order the Traco Power TRI 10 series online today to ensure your industrial or transportation project benefits from high isolation, efficient power delivery, and reliable performance. With a compact DIP-24 design, reinforced insulation, and a wide input voltage range, this converter is perfect for demanding applications. Its enhanced safety certifications and low no-load power consumption make it a top choice for engineers seeking dependable, long-lasting power solutions. Purchase now for quick delivery and technical support tailored to your needs.
Get Traco Power TRI 10 series today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TRI102413?
You can click on the BUY or RFQ button to purchase TRI102413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI102413?
You can download the TRI102413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI102413?
TRACO POWER
