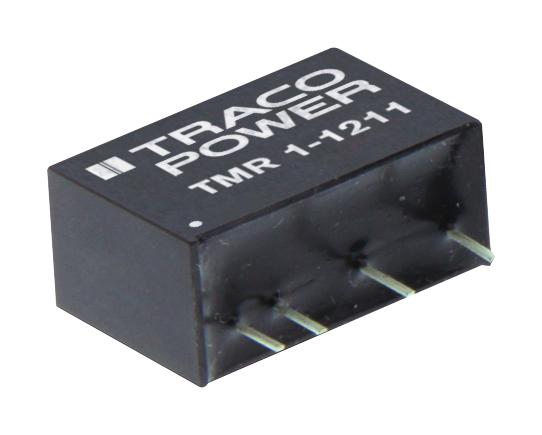

TRACO POWER TMR11211 DC/DC Converter
The TMR 1 series are compact, reliable 1-watt isolated DC/DC converters with regulated outputs, designed for industrial electronics, communication, and instrumentation. They feature wide 2:1 input voltage ranges, fully regulated outputs, high efficiency, and a small footprint in SIP-6 or SMD packages, making them ideal for space-constrained applications. The converters operate from -40°C to +85°C, include remote On/Off control, short circuit protection, and provide 1500 VDC isolation, ensuring safety and performance in demanding environments. Ideal for industrial and communication equipment requiring stable power conversion.
TRACO POWER TMR11211 DC/DC Converter Specifications:
- Input Voltage Range: 4.5 - 9.0 VDC or 5.0, 12, 24, 48 VDC depending on model
- Output Voltage: 5 VDC, 12 VDC, 15 VDC, 24 VDC, 36 VDC, 48 VDC depending on model
- Output Current: up to 200 mA
- Efficiency: 76% to 82% depending on model
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +85°C
- No minimum load required
- Short circuit protection: Continuous, automatic recovery
- Remote On/Off Control: SMD models (On: <0.6VDC, Off: 2.7-15VDC)
- Ripple & Noise: 30mVp-p (SMD), 50mVp-p (SIP)
- Switching Frequency: 220kHz
- Dimensions: SIP package approx. 1.2cm²; SMD package detailed dimensions provided
- Certifications: UL, CSA, IEC 60950-1
- Case Material: Non-conductive plastic, potting epoxy (SIP)
- Weight: ~3.1g (SIP), ~3.3g (SMD)
Buy the TracoPower TMR 1-0511 U+2013 Reliable DC-DC Converter for Industrial Applications
Enhance your industrial electronics with the high-performance TMR 1 series DC/DC converters. These compact, reliable modules feature wide input ranges, regulated outputs, and high efficiency, ensuring stable power delivery in demanding environments. With remote On/Off control, short circuit protection, and excellent thermal performance, they are ideal for communication equipment, instrumentation, and industrial automation. Easily install these lightweight modules in space-constrained applications to ensure consistent operation, safety compliance, and long-term durability. Order online today for fast delivery and immediate integration into your projects.
Buy TracoPower TMR 1-0511 now and experience unmatched reliability and performance in your industrial power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TMR11211?
You can click on the BUY or RFQ button to purchase TMR11211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR11211?
You can download the TMR11211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR11211?
TRACO POWER
