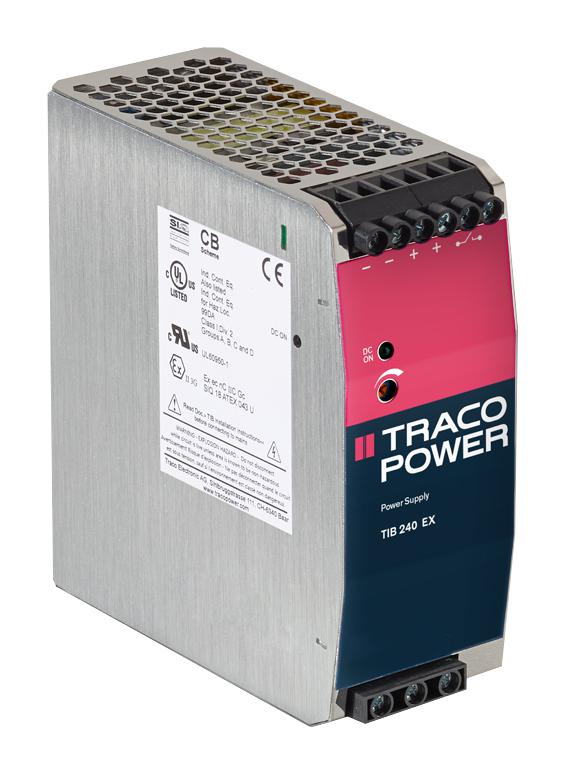

TRACO POWER TIB240124EX Industrial Power Supply
The TIB 240-EX series by Traco Power offers 240-watt DIN rail power supplies designed for industrial applications in hazardous locations. Certified for UL Hazloc Class I, Div 2, and ATEX standards, these power supplies feature up to 95% efficiency, a rugged metal case, and optional side-mounting for easy integration. They support full-load operation from -40°C to +60°C, 150% peak current for up to 4 seconds suitable for motors and actuators, and include protections against short circuits and overloads. Enhanced EMI suppression and high power factor make these reliable for demanding environments, backed by a 5-year warranty.
TRACO POWER TIB240124EX Industrial Power Supply Specifications:
- Power Output: 240 Watt
- Output Voltage: 24 VDC (adjustable 23.5 - 28.0 V), 48 VDC (adjustable 47.0 - 56.0 V)
- Output Current: 10,000 mA (24 V), 5,000 mA (48 V)
- Peak Current: 150% for 4 seconds
- Efficiency: Up to 95%
- Operating Temperature Range: -40°C to +60°C
- Enclosure: Rugged metal case
- Certifications: UL Hazloc Class I Div 2, ATEX, IEC 60950-1, UL 508
- Protection: Short circuit, overload
- Additional Features: Back power immunity, EMI suppression, high power factor (up to 99%)
- Cooling: Convection cooled
- Input Voltage: AC, 85-264 VAC
- Full Load Temperature: Up to 60°C
Buy the Buy Traco Power TIB240124EX Part Number TIB240124EX Online
Purchase the Traco Power TIB240124EX now online to ensure reliable and efficient power delivery for industrial applications. Designed for hazardous locations, this 240W DIN rail power supply offers high efficiency, wide temperature range, and robust protection features. Certified for UL Hazloc Class I Div 2 and ATEX standards, it supports full load operation from -40°C to +60°C. Its rugged metal case, high power factor, and EMI suppression provide optimal performance and safety in demanding environments. Buy online today for quick delivery and dependable operation.
Buy Traco Power TIB240124EX now and experience unmatched reliability and high efficiency in hazardous industrial environments.
