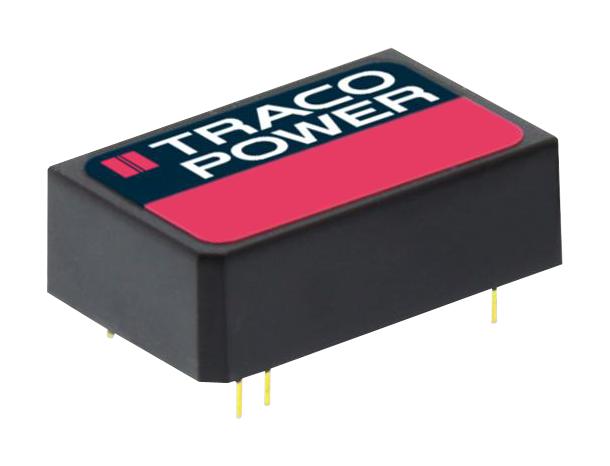

TRACO POWER TRI61223 DC-DC Converter
The TRI 6 series is a high-isolation, regulated 6 Watt DC/DC converter line designed for demanding industrial, transportation, and instrumentation applications. Features include reinforced isolation with withstand voltages up to 9000 VDC for 1s and 7071 VDC for 60s, high efficiency up to 89%, and a compact DIP-24 package. It offers a wide 2:1 input voltage range (9-75 VDC), low no-load power consumption, precise regulation, and built-in safety standards such as IEC 62368-1. The converters operate reliably from -40°C to +85°C, with overload, overvoltage, and short circuit protections, making it suitable for harsh environments.
TRACO POWER TRI61223 DC-DC Converter Specifications:
- Input Voltage Range: 9-75 VDC (2:1 range)
- Input Current at No Load: 10-5 mA depending on voltage
- Full Load Input Current: 583 mA at 12 V, 291 mA at 24 V, 144 mA at 48 V
- Surge Voltage: 50 VDC at 24 V, 100 VDC at 48 V
- Input Under Voltage Lockout: 8 V at 72 V input, 16 V at 24 V, 34 V at 48 V
- Output Power: 6 Watts
- Output Voltage Regulation: 1% max (single), 1% max (dual)
- Ripple & Noise: 20 MHz bandwidth, 70 mVp-p max
- Capacitive Load: 1500 pF (single output), 210-260 pF (dual output)
- Isolation Voltage: 9000 VDC for 1s, 7071 VDC for 60s
- Isolation Resistance: ≥10,000 MOhm at 500 VDC
- Isolation Capacitance: 40 pF max at 100 KHz
- Operating Temperature: -40°C to +85°C, derating above 85°C
- Efficiency: Up to 89%
- Protection: Overload, overvoltage, short circuit
- Safety Standards: IEC/EN/UL 62368-1, Pollution Degree 2
- EMC Emissions: EN 65032 class A and B
- EMC Immunity: EN 55024, IEC 61000-4 series
- Cooling: Natural convection
- Dimensions: DIP-24 package, 20.32 mm length
- Housing: Plastic UL 94V-0 rated
- Weight: 16.59 grams
Buy the TRACO POWER TRI 6 Series – Reliable DC-DC Converter for Industrial Applications
Discover the TRACO POWER TRI 6 Series, a high-quality 6 Watt DC-DC converter designed for industrial, transportation, and instrumentation sectors. Featuring reinforced isolation up to 9000 VDC, efficiency up to 89%, and a wide input voltage range of 9-75 VDC, it ensures reliable performance even in harsh conditions. Its compact DIP-24 package, built-in safety certifications, and protections against overload, overvoltage, and short circuits make it an ideal choice for demanding applications. Purchase online today for a dependable power solution that guarantees stability and safety in complex environments.
Get TRACO POWER TRI 6 Series today—built for precision, high isolation, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TRI61223?
You can click on the BUY or RFQ button to purchase TRI61223 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI61223?
You can download the TRI61223 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI61223?
TRACO POWER
