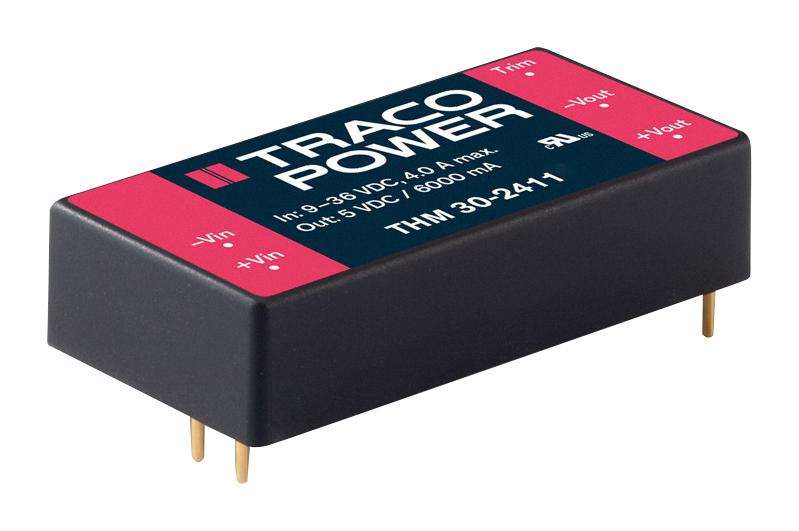

TRACO POWER THM302411 Medical DC/DC Converter
The THM Series 30 Watt DC/DC converters feature a compact 2 x 1 inch plastic case with wide 2:1 input voltage range, reinforced 5000 VACrms isolation, extremely low leakage current under 2.5 pA, and efficiency reaching up to 90%. Certified under IEC/EN/ES 60601-1 3rd edition for 2x MOPP, they are suitable for medical and industrial applications, including transportation and measurement systems. Operating reliably from -40°C to +80°C, they ensure safety, low noise, and high performance in demanding environments with excellent EMC immunity.
TRACO POWER THM302411 Medical DC/DC Converter Specifications:
- Power: 30 W
- Input Voltage Range: Wide 2:1 ratio (e.g., 9-36 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC, 48 VDC models)
- Output Voltages: 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC, 48 VDC
- Maximum Output Current: 6000 mA to 3000 mA depending on model
- Efficiency: Up to 90%
- Isolation Voltage: 5000 VACrms
- Leakage Current: < 2.5 pA
- Operating Temperature Range: -40°C to +80°C
- Start-up Voltage: 9 VDC, 18 VDC, 36 VDC depending on model
- Overvoltage Protection: 6.2 VDC to 30 VDC
- Overload Protection: Yes (hiccup mode at 150%)
- Short-circuit Protection: Continuous, automatic recovery
- Humidity: 5% to 95% RH (non-condensing)
- Dimensions: 2 x 1 inches (51 x 25.4 mm)
- Weight: Approx. 32 g
- Soldering Temperature: Max. 265°C for 10s
- Certifications: IEC 60601-1, EN 55032, EN 61000-4 series, RoHS, Reach
Buy the Traco Power Series THM: 30 Watt Medical DC/DC Converter
Order the Traco Power THM 30 series 30 Watt DC/DC converters online today to secure a high-performance, reliable power solution for medical, industrial, and transportation applications. These compact, certified converters feature reinforced isolation up to 5000 VAC, low leakage current, efficiency up to 90%, and an operational temperature range from -40°C to +80°C, ensuring safety and stability. Designed with high-quality components and strict compliance with IEC 60601-1 standards, they deliver consistent power, low noise, and durability in critical environments. Buy now for optimized performance and peace of mind.
Buy Traco Power THM 30 series 30 Watt medical DC/DC converter now and experience unmatched reliability, safety, and high efficiency for demanding applications.
Frequently Asked Questions
Where can I buy TRACO POWER THM302411?
You can click on the BUY or RFQ button to purchase THM302411 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THM302411?
You can download the THM302411 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THM302411?
TRACO POWER
