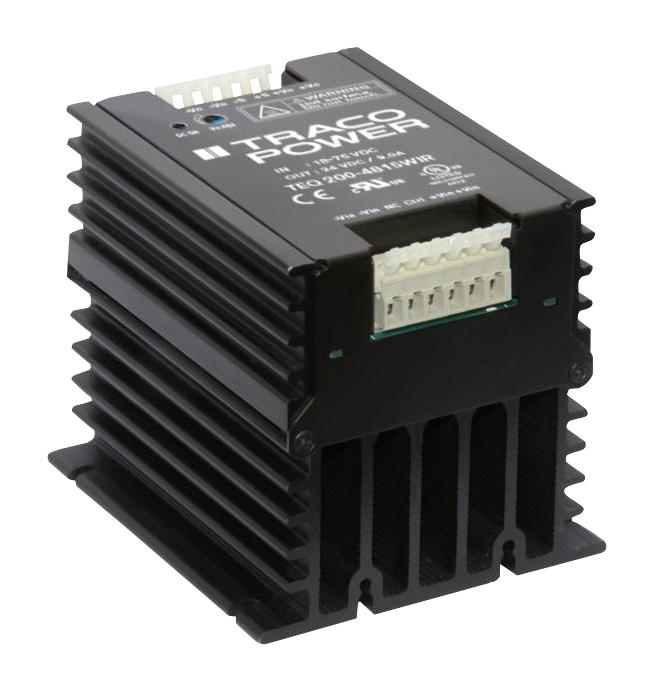

TRACO POWER TEQ2007216WIR DC/DC Converter Module
The TEQ 200WIR series from TracoPower consists of 200W isolated high-performance DC/DC converters housed in rugged, sealed metal cases. These modules are suitable for industrial applications where PCB mounting is not feasible, and mounting on a chassis is required. They feature an ultra-wide 4:1 input voltage range, reverse input voltage protection, output voltage trimming, remote on/off, undervoltage lockout, soft-start, output current limitation, overvoltage protection, and automatic recovery short circuit protection. Certified according to IEC/EN 60950-1, UL 508, CSA C22.2 No. 107.1-01, and UL 60950-1 standards. They support nominal input voltages of 48VDC or 110VDC, with selectable outputs of 12VDC, 24VDC, 28VDC, or 48VDC, delivering maximum currents of up to 20A. The converters achieve efficiencies up to 90%, ensuring reliable operation with excellent thermal performance via convection cooling. With EN 50155 approval for railway applications and input filtering meeting EN 55022 Class A, they also feature maximum ripple and noise levels ranging from 125mVp-p to 350mVp-p across output voltages. Rated isolation voltages are 2250VDC (input to output) and 1600VDC (input to case) for 60 seconds. Operating temperature range spans from -40°C to 105°C, with derating above +70°C. The modules use PWM switching at approximately 250 kHz.
TRACO POWER TEQ2007216WIR DC/DC Converter Module Specifications:
- Input Voltage Range: 9.6-13.2V (12V model), 19.2-26.4V (24V model), 22.4-30.8V (28V model), 38.4-52.8V (48V model), 43-160V (high voltage models)
- Output Voltage: 12V, 24V, 28V, 48V
- Maximum Output Current: Up to 20A
- Efficiency: Up to 90%
- Isolation Voltage: 2250VDC (input/output), 1600VDC (input/case)
- Operating Temperature: -40°C to +105°C (up to +70°C without derating)
- Derating Temperature: Above +70°C, reduce output power according to derating graph
- Ripple & Noise: 125mVp-p (12V models), 250mVp-p (24V, 28V models), 350mVp-p (48V models)
- Starting Voltage: 19V (48V models), 43V (110V models)
- Surge Voltage: 100V (48V), 185V (110V)
- Mechanical: Rugged aluminium casing, silicone potting (UL94V-0)
- Dimensions: Not specified, weight approximately 800g
- Switching Frequency: ~250 kHz PWM
- Compliance & Certification: IEC/EN 60950-1, UL 508, CSA C22.2 No. 107.1-01, UL 60950-1, EN 50155 railway standard
- Isolation Resistance: >1 GOhm at 500 VDC
- Environmental: Operating humidity 5-95%, non-condensing
- MTBF: > 270,000 hours at +55°C
Buy the TracoPower Series TEQ2007216WIR DC/DC Converter: 48V/20A High-Performance Power Module
Discover the TracoPower TEQ2007216WIR DC/DC converter module; a rugged, high-efficiency solution designed for industrial applications. With a wide input voltage range, remote On/Off, excellent thermal performance, and proven certifications, this 200W power module ensures reliable operation even in demanding environments. Its high MTBF, extensive safety features, and low ripple noise make it ideal for railroad, industrial, and battery-operated systems. Purchase online today and enhance your project's power management with confidence and ease.
Buy TracoPower TEQ2007216WIR now and experience reliable, high-efficiency power conversion with wide input range and railway-approved certification.
