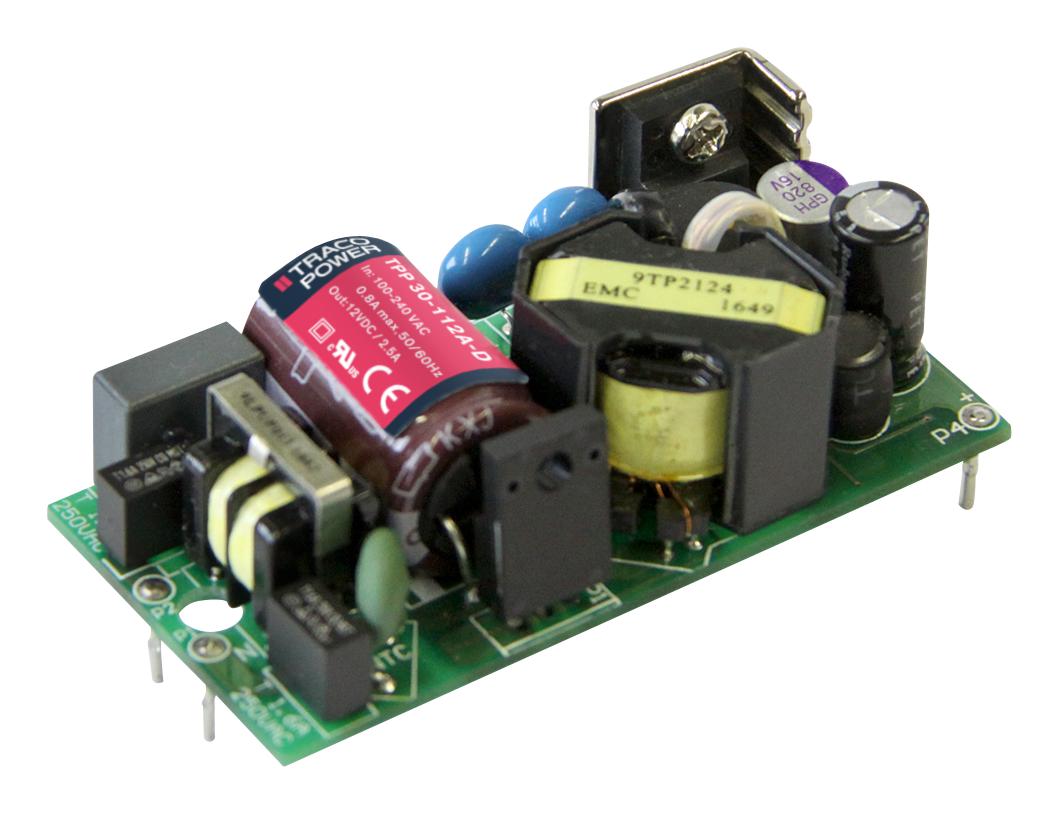

TRACO POWER TPP30112AD Medical Power Supply
The TPP 30A-D Series power supply is designed for medical applications, providing up to 30W of power with high efficiency and reliable safety standards. It features reinforced double insulation per IEC/EN/ES 60601-1 3rd edition, low leakage current under 75 pA, and EMC compliance to IEC 60601-1-2 4th edition. Operating efficiently from -40°C to +60°C, up to 85°C with derating, it supports an altitude of 5000 meters, making it ideal for hospital and healthcare equipment requiring low noise, high reliability, and safety certifications. The series offers multiple adjustable voltage models, low no-load power consumption, and continuous short circuit protection for enhanced operational safety.
TRACO POWER TPP30112AD Medical Power Supply Specifications:
- Output Power: 30 W
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC
- Output Voltage Range: 3.3 VDC to 48 VDC (adjustable ±10%)
- Output Current: 2,000 to 6,000 mA depending on model
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +60°C full load, up to 85°C with derating
- Altitude: Up to 5000 m
- Leakage Current: Less than 75 pA
- Protection: Continuous short circuit, overvoltage protection 125-140% of output voltage
- Certifications: IEC 60601-1, IEC 62368-1, UL 62368-1, EN 62368-1
- Safety Class: II reinforced insulation
- Environmental Conditions: Non-condensing humidity up to 95%
- Dimension: 1.36'' x 2.74'' (35mm x 70mm)
- Cooling: Natural convection
- Insulation System: Reinforced insulation, Pollution Degree 2
Buy the Buy Traco Power TPP 30A-D Part Number TPP30112AD Online
Order the Traco Power TPP 30A-D series online today to ensure your medical systems operate reliably at high efficiency with reinforced insulation, low leakage current, and compliance to all safety standards. This 30W power supply offers adjustable output voltages ranging from 3.3V to 48V, excellent thermal performance, and low power consumption when idle. Easy to integrate into healthcare equipment, it guarantees safety, durability, and cost-effective power solutions for hospitals or medical device manufacturing. Secure yours now for seamless system operation.
Buy Traco Power TPP 30A-D now and experience unmatched reliability and performance for medical applications with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy TRACO POWER TPP30112AD?
You can click on the BUY or RFQ button to purchase TPP30112AD from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP30112AD?
You can download the TPP30112AD datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP30112AD?
TRACO POWER
