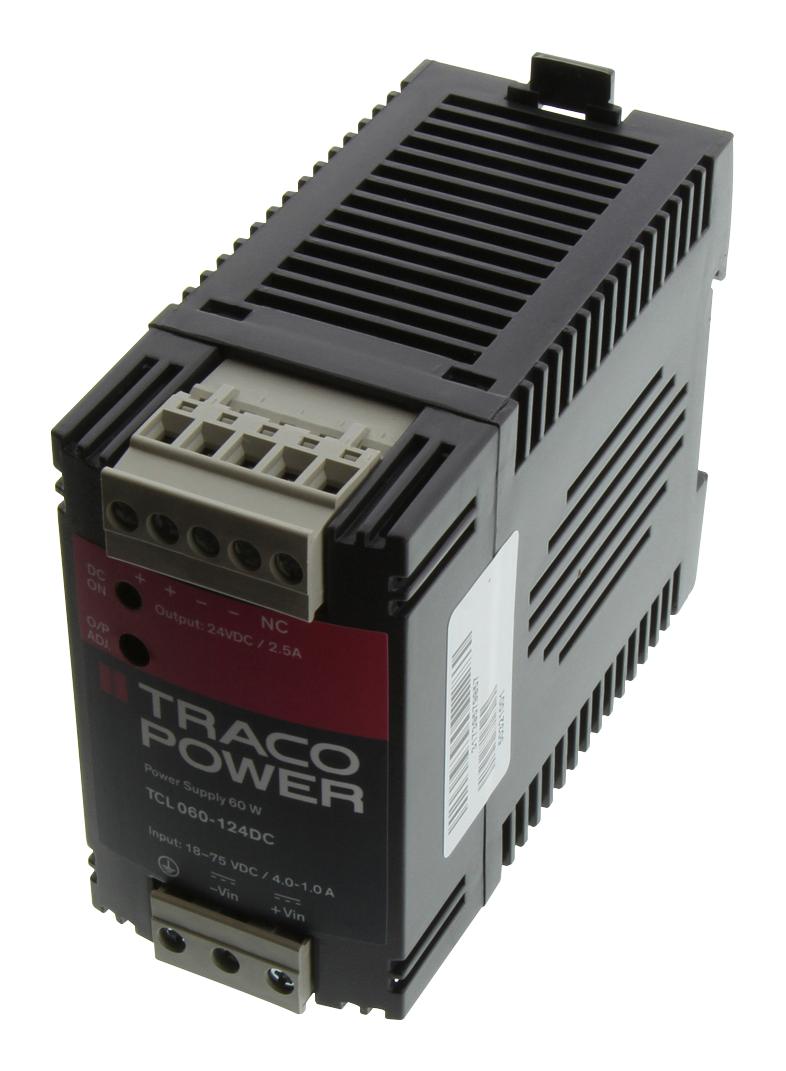

TRACO POWER TCL060124DC Industrial DC/DC Converter
The TCL series DC/DC converters provide a reliable power source for industrial process controls and factory automation, featuring ultra-wide input voltage ranges from 9.5-18 VDC and 18-75 VDC. They offer adjustable output voltages, overload and short circuit protection, low ripple and noise, and operate with an efficiency of 86%. Designed for DIN-rail mounting, these compact converters include a wall mount bracket, making installation flexible. Suitable for critical industrial environments, they support isolation of loads or refreshing 24V bus voltages with certified safety standards and a 3-year warranty.
TRACO POWER TCL060124DC Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9.5-18 VDC or 18-75 VDC depending on model
- Output Voltage: 5 VDC to 28 VDC adjustable
- Max Output Current: 2.5A to 10A depending on model
- Efficiency: 86% typical
- Ripple and Noise: <50 mV pk-pk (20 MHz bandwidth)
- Protection: Overload, short circuit, reverse polarity via internal fuse
- Isolation Voltage: 1500 VDC (Input/Output)
- Operating Temperature: -25°C to +70°C, derating above +50°C
- Humidity: 95% non-condensing
- Enclosure Material: UL 94V-0 rated plastic
- Mounting: DIN-rail snap-on or wall/chassis with included bracket
- Certifications: UL 508, UL 60950-1, CSA, EN 61000-6-3, EN 61000-6-2
Buy the Buy TRACOPOWER Industrial DC/DC Converter Part Number TCL060124DC Online
Purchase the TRACOPOWER TCL060124DC industrial DC/DC converter online for reliable power in industrial automation, process control, and load isolation. Designed with ultra-wide input voltage ranges from 18-75 VDC, adjustable output, and high efficiency of 86%, this compact converter offers overcurrent and short circuit protection, low ripple noise, and a durable UL 94V-0 rated enclosure. Ideal for DIN-rail mounting or wall installation, each unit guarantees high reliability, safety compliance, and a 3-year warranty. Enhance your industrial systems today with this versatile power solution.
Get TRACOPOWER TCL060124DC today—built for industrial reliability, adjustable output, and easy DIN-rail installation.
Frequently Asked Questions
Where can I buy TRACO POWER TCL060124DC?
You can click on the BUY or RFQ button to purchase TCL060124DC from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TCL060124DC?
You can download the TCL060124DC datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TCL060124DC?
TRACO POWER
