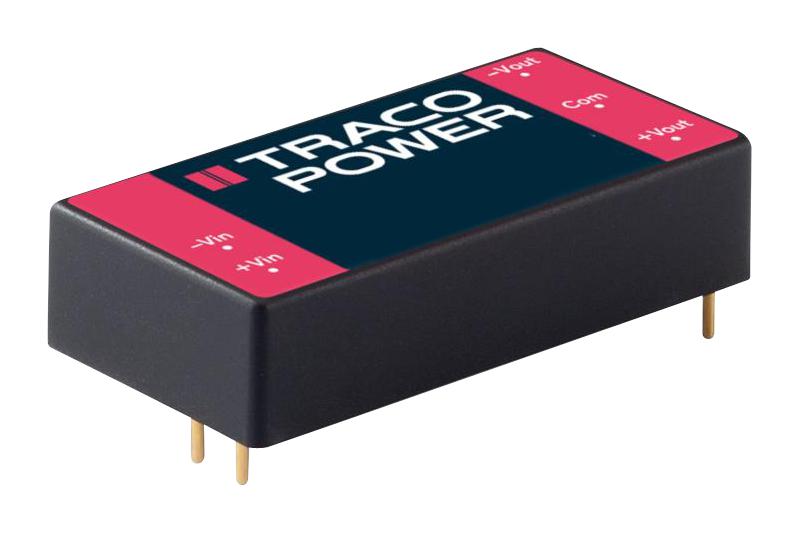

TRACO POWER TRI204815 DC/DC Converter
The TRI 20 series offers high isolation, 20-watt DC/DC converters in a compact 2x1-inch package, suitable for industrial, transportation, and instrumentation applications. It features reinforced insulation capable of withstanding 8000 VDC for 1 second and 5940 VDC for 60 seconds, with a working voltage of 1000 VAC RMS. The series supports a wide input range of 9-75 VDC, high efficiency up to 90%, and low no-load power consumption. Certifications include IEC/EN/UL 62368-1, ensuring safety and reliability in demanding environments. The series includes models with single and dual outputs, adjustable regulation, and excellent EMI filtering.
TRACO POWER TRI204815 DC/DC Converter Specifications:
- Power: 20 Watts
- Input Voltage Range: 9-75 VDC (wide 2:1 ratio)
- Input Current: 10-20 mA at no load, up to 945 mA at full load
- Maximum Surge Voltage: 25-100 VDC depending on model
- Isolation Voltage: 1000 VAC RMS working, 8000 VDC test; Resistance: 10 MΩ minimum
- Isolation Capacitance: 80 pF max at 100 KHz, 1V
- Operating Temperature Range: -40°C to +76°C, derating to +55°C
- Efficiency: Up to 90%
- Output Voltage Accuracy: ±1%
- Regulation: 0.5% for single, 1% for dual-output models
- Ripple & Noise: 50-150 mVp-p depending on output
- Protection: Overload, overvoltage, short circuit
- Startup Time: 30 ms max
- Compliance: IEC/EN/UL 62368-1, EN 65032 Class A internal filter
- Dimensions: 2” x 1” x 0.4” (51 x 25 x 10 mm)
- Weight: 30 g
- Enclosure: Non-conductive plastic, UL V-0 rated
- Cooling: Natural convection
- Soldering Profile: Wave soldering at 260°C for 10 seconds
- Pin Connection: THD through-hole
Buy the Traco Power TRI204815 – Reliable Industrial Power Supply for Demanding Applications
Order the Traco Power TRI 20 series DC/DC converters today online and ensure your industrial, transportation, or instrumentation project benefits from high efficiency, reinforced isolation, and certified safety standards. With a compact size, wide input voltage range, and robust protection features, these power modules guarantee safe, reliable operation in extreme environments. Take advantage of easy online purchasing, fast delivery, and exceptional customer support to optimize your power solutions today.
Buy Traco Power TRI 20 series power converter now and experience unmatched reliability and performance in industrial and transportation sectors.
Frequently Asked Questions
Where can I buy TRACO POWER TRI204815?
You can click on the BUY or RFQ button to purchase TRI204815 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI204815?
You can download the TRI204815 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI204815?
TRACO POWER
