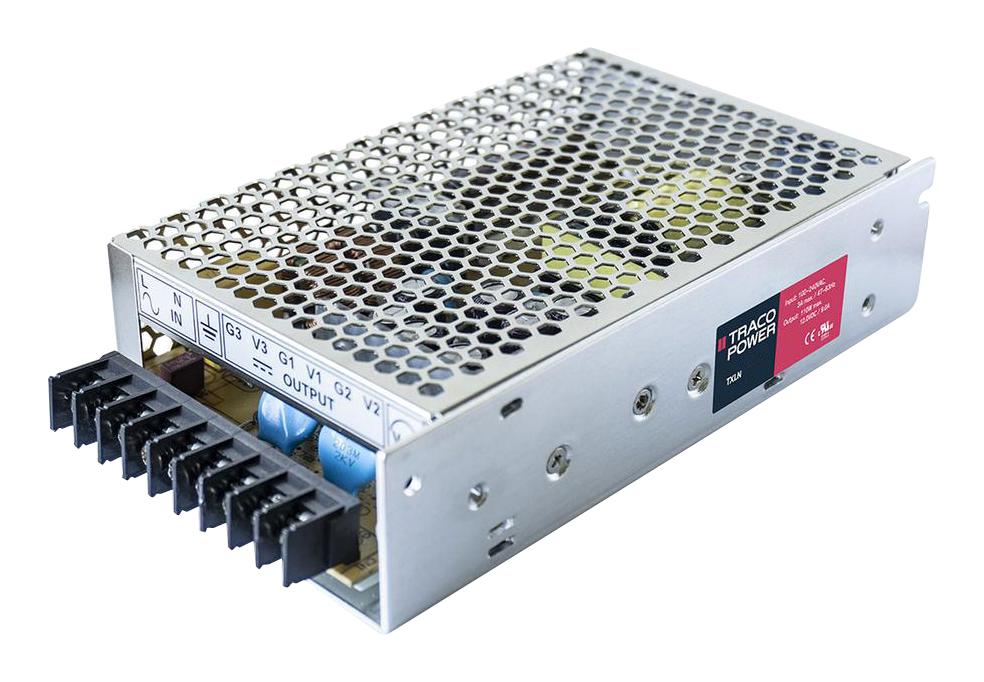

TRACO POWER TXLN110105 Industrial Power Supply
The TXLN 110 series is a family of compact, high-efficiency power supplies housed in a low-profile metal casing with screw terminal connections, designed for cost-sensitive applications. These units feature universal input voltage (88-264VAC), are convection cooled (fanless), and comply with European EMC standards and the Low Voltage Directive (LVD). They offer protections against short circuits, overvoltage, and overload, and are certified to IEC/EN/UL 62368-1 safety standards. Operating temperature ranges from -20°C to +70°C, with a switching frequency of 61kHz to 69kHz (PWM). The aluminum housing and connection to protective earth (PE) ensure safety and reliability. They come with a 3-year warranty, making them suitable for various industrial and electronic applications.
TRACO POWER TXLN110105 Industrial Power Supply Specifications:
- Input Voltage: 88-264 VAC, 125-375 VDC
- Input Frequency: 47-63 Hz
- Output Power: 110 W
- Output Voltage and Current: 5 VDC (20,000 mA), 12 VDC (9,200 mA), 15 VDC (7,300 mA), 24 VDC (4,600 mA), 48 VDC (2,300 mA)
- Efficiency: Up to 87%
- Protection: Short circuit, overvoltage, overload
- Safety Certifications: IEC 62368-1, UL 62368-1, EN 62368-1
- Operating Temperature: -20°C to +70°C
- Cooling: Natural convection
- Housing Material: Aluminum
- Isolation Voltage: Input to Output 3000 VAC, Input to Case 1800 VAC
- Certification: CE, UL, CB, EN 61000-6-3, EN 61000-6-1
- Dimensions: See datasheet
- Connection: Screw Terminal
Buy the Traco Power TXLN110105 – Reliable Power Supply for Industrial Applications
Upgrade your electronic and industrial systems with the Traco Power TXLN110105 power supply. Featuring universal input voltage, fanless convection cooling, and certified safety standards, this 110-watt power supply ensures reliable operation in demanding environments. Its high efficiency up to 87% minimizes energy loss, while protections against short circuit, overvoltage, and overload safeguard your equipment. Easy installation via screw terminals, durable aluminum housing, and a 3-year warranty make it the ideal choice for cost-sensitive applications requiring stable and safe power delivery in a compact form.
Buy Traco Power TXLN110105 now and experience unmatched reliability, high efficiency, and safety features tailored for industrial and electronic projects.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN110105?
You can click on the BUY or RFQ button to purchase TXLN110105 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN110105?
You can download the TXLN110105 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN110105?
TRACO POWER
