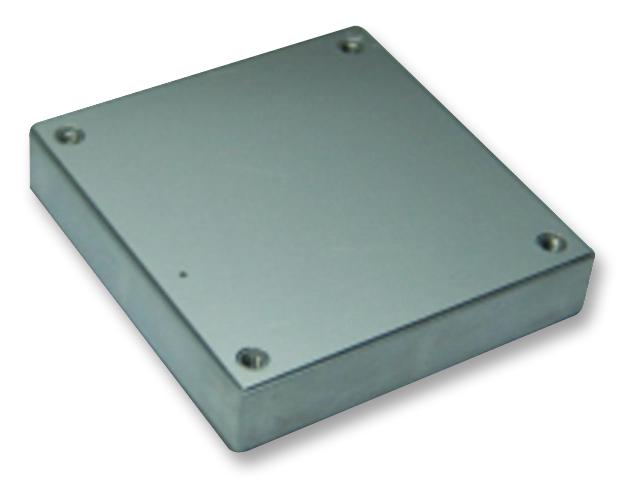

TRACO POWER TEP1002412 DC/DC Converter
The TEP 100 Series is a rugged, high-performance isolated DC/DC converter module delivering 100 Watts, with ultra-wide input ranges from 3.3 VDC to 75 VDC, suitable for industrial and battery-operated applications. It features a metal case, optional chassis mount, high efficiency, thermal management options, remote On/Off, and output voltage trimming. Designed for demanding environments, it supports full load operation at up to 60°C, includes reverse voltage protection, and adheres to UL, IEC safety standards, making it ideal for versatile power supply solutions.
TRACO POWER TEP1002412 DC/DC Converter Specifications:
- Input Voltage Range: 3.3 VDC to 75 VDC, dependent on model
- Output Voltage: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC, 28 VDC, 48 VDC
- Output Current Max: 250A (for 3.3 V), 200A (for 5 V), 36A (for 28 V), 21A (for 48 V)
- Efficiency: up to 93%
- Power: 100 Watts
- Operating Temperature: -40°C to +75°C, case max 105°C
- Isolation Voltage: 2,250 VDC (Input/Output), 1,500 VDC (Input/Case)
- Ripple and Noise: 75-300 mVpk-pk depending on output
- Start-up Voltage: 8.5 VDC (for 12 V models), 175 VDC (for 24 V models), 35.5 VDC (for 48 V models)
- Protection: Reverse input voltage, over-voltage, short circuit, thermal shutdown
- Dimensions: 1.00 x 2.40 inches (25.4 x 61.0 mm)
- Mounting Options: Chassis mount, optional heatsink, with or without EMI filter
Buy the TracoPower Series TEP: DC/DC Converter 100W 3.3V/5V/12V/15V/24V/28V/48V: TEP1002412
Order the TracoPower TEP 100 Series DC/DC converter online for reliable industrial power solutions. With rugged construction, high efficiency, broad input voltage range, and comprehensive protections, this 100-watt module ensures durable performance across demanding applications. Ideal for industrial environments and battery-powered systems, it offers easy mounting options, remote control, and excellent thermal management. Buy now for a dependable power supply that meets international safety standards and delivers consistent, stable output for your critical systems.
Get TracoPower TEP 100 series DC/DC converter today—built for industrial-grade reliability, efficiency, and versatile mounting options.
