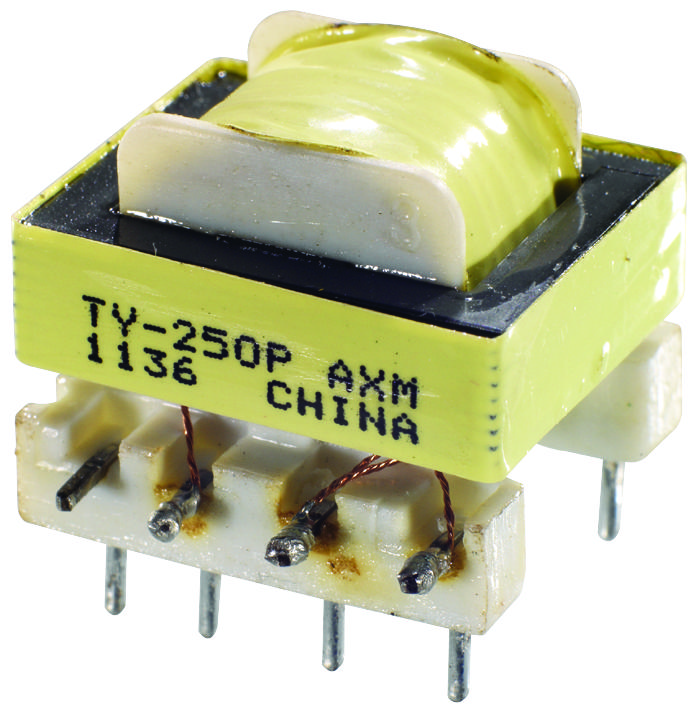

TRIAD MAGNETICS TY250P Audio Transformer
The TY-250P is a PCB-mounted audio transformer designed for a wide range of audio applications including line matching, pulse triggering, interstage, output, and input isolation. It features a split secondary with center tap contacts, operates across a broad frequency spectrum from 20 Hz to 20,000 Hz, and provides impedance matching with a primary impedance of 10002 CT and secondary of 2509 CT. The transformer is RoHS compliant, has a weight of 0.4 oz, and is suitable for industrial and audio signal transfer needs in professional sound systems and electronic equipment.
TRIAD MAGNETICS TY250P Audio Transformer Specifications:
- Primary Impedance: 10002 CT
- Secondary Impedance: 2509 CT
- Output Power: 20mW
- Primary DC Unbalance: 4mA
- Frequency Response: + 1dB from 20 to 20,000 Hz
- Insertion Loss at 1KHz: < 2.8dB
- DCR: Primary 1720 Nominal, 0.700Ω; Secondary 172Ω Nominal
- Turns Ratio: 1:1 (tie 6&7), 2:1 (tie 5 to 6 and 7 to 8)
- Dielectric Strength: 1500V Primary to Secondary
- Operating Temperature Range: -40°C to 105°C
- Dimensions: Not specified, typical PCB mounted
- Weight: 0.4 oz
- RoHS Compliant since February 2005
Buy the Triad Series Audio Transformer: TY-250P
Purchase the Triad TY-250P audio transformer online today to ensure optimal sound quality and signal integrity in your audio systems. Its wide frequency response, split secondary with center tap, and RoHS compliance make it ideal for professional applications, including line matching, pulse triggering, and interstage connections. Designed for PCB mounting, this lightweight transformer enhances your electronic or audio equipment with excellent impedance matching and durable construction. Order now and elevate your audio signal performance with a trusted industry-standard transformer.
Buy Triad TY-250P now and experience high-quality audio signal transfer and reliable isolation for your professional audio and industrial projects.
