TRIAD MAGNETICS VPT230110 Power Transformer

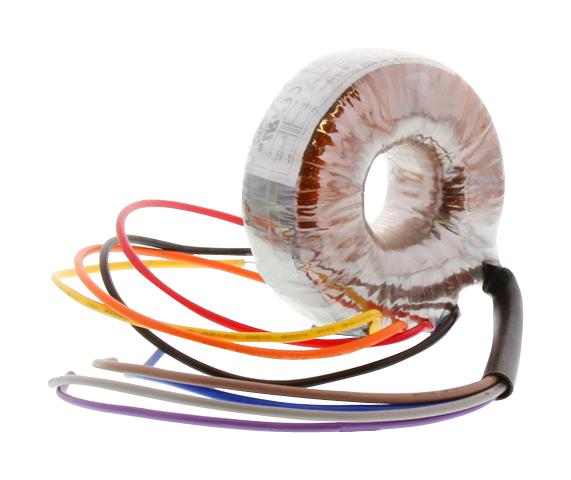

The VPT230-110 is a toroidal transformer featuring a toroidal construction that helps reduce stray magnetic fields, enhances efficiency, and minimizes size compared to traditional EI-type transformers. It is built with a Class B (130°C) insulation system and complies with international safety standards. The transformer includes one metal mounting plate and two rubber pads for installation. It is supplied with an 8-inch long, 0.25-inch stripped and tinned stranded UL 1015 lead wire connection. The transformer has been high-pot tested at 4000VAC (primary to secondary). It is suitable for power management and industrial applications.
TRIAD MAGNETICS VPT230110 Power Transformer Specifications:
- Maximum Power: 25VA
- Input Voltage: Series: 230VAC, 50/60Hz; Parallel: 115VAC, 50/60Hz
- Output Voltage: Series: 230VAC CT @ 0.11A; Parallel: 115VAC @ 0.22A
- Voltage Regulation: 12% TYP from full load to no load
- Temperature Rise: 30°C TYP
- Hipot: 4000VAC, Primary to Secondary
- Efficiency: 87% TYP @ full load
- Construction: Toroidal, Class B insulation (130°C)
- Dimensions: Not specified in data
- Weight: 0.4kg
- Mounting: Metal plate with rubber pads
- Lead wire: 8 inches long, 0.25 inches stripped and tinned, UL 1015, 22 AWG
- Safety Certifications: UL and CE compliant
- RoHS: Compliant as of February 2008
Buy the Buy Triad Power Transformer Part Number VPT230110 Online
Purchase the VPT230-110 toroidal transformer online to enjoy high efficiency, low stray magnetic fields, and reliable power management. This compact transformer features a toroidal design that reduces electromagnetic interference, making it ideal for industrial and commercial use. It includes a robust metal mounting plate, rubber pads for secure installation, and UL-rated UL 1015 lead wires. With proven safety standards, RoHS compliance, and high-voltage testing at 4000VAC, this transformer ensures dependable performance in your power distribution or industrial projects.
Buy Triad VPT230-110 toroidal power transformer now and experience unmatched reliability, efficiency, and easy installation for industrial applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS VPT230110?
You can click on the BUY or RFQ button to purchase VPT230110 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part VPT230110?
You can download the VPT230110 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of VPT230110?
TRIAD MAGNETICS
