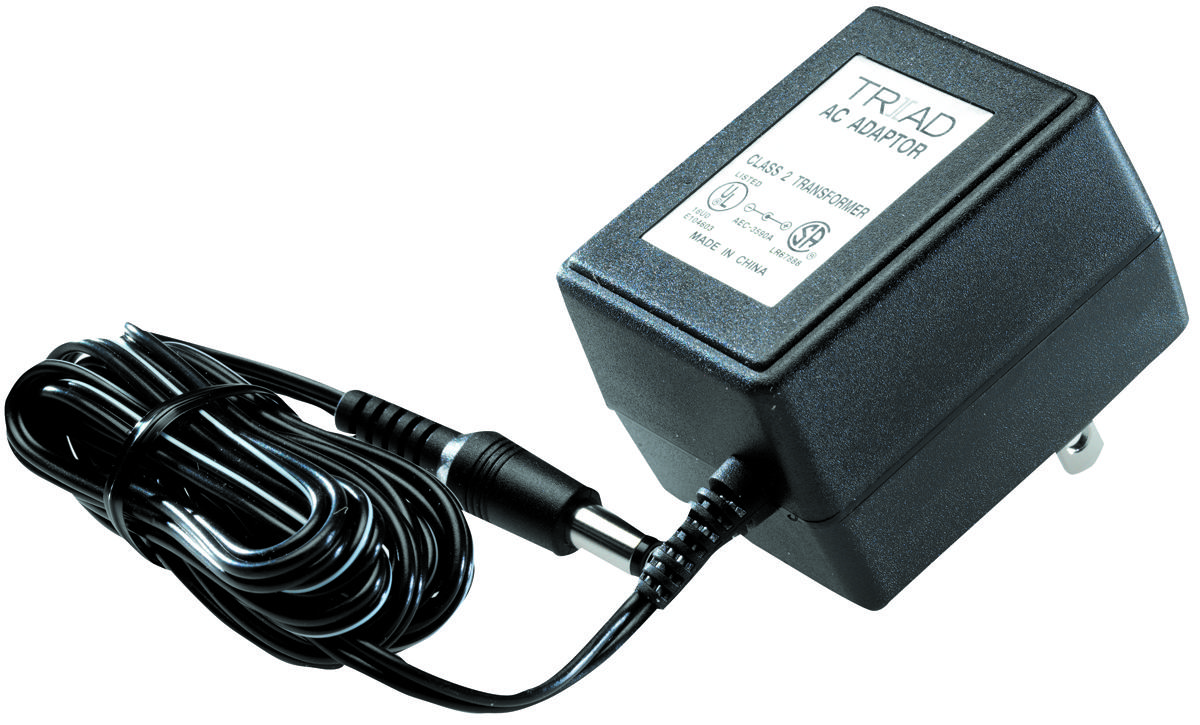

TRIAD MAGNETICS WAU16500 Power Supply
The WAU16-500 is a compact, wall plug-in AC power supply that simplifies product design by eliminating internal cooling components, reducing noise, and decreasing size and weight. Its enclosed, tamper-proof thermoplastic housing enhances safety and durability, ideal for power management. Operating with 11.2W input at 120V 60Hz, it features a 16VAC output at 500mA, with a 6-foot, 24 AWG cord for flexible installation. Suitable for various industrial and electronic applications, it ensures efficient heat dissipation, provides a safer lower voltage, and meets UL and RoHS standards for reliable operation.
TRIAD MAGNETICS WAU16500 Power Supply Specifications:
- Input Voltage: 120V 60Hz, 11.2W
- Output: 16VAC + 5%, 500mA
- Secondary No-Load Voltage: 17.25VAC Ref.
- Operating Temperature Range: -10°C to +40°C
- Temperature Rise: 75°C Max at rated load
- Enclosure: Thermoplastic molded case
- Output Cord: 6 feet, 24 AWG
- Agency Certifications: UL 1310, RoHS compliant
- Dimensions: 11mm height, 493+/-0.020mm
Buy the Triad 500 Power Supply – Reliable AC Power for Industrial Applications
Purchase the Triad 500 Power Supply online today and enhance your industrial or electronic projects with a compact, efficient, and safe power solution. Designed with a fully enclosed, tamper-proof thermoplastic case, it ensures durability and safety during operation. Its 16VAC output at 500mA provides stable power for sensitive circuits, while the 6-foot output cord offers flexible installation. Certified by UL and RoHS compliant, this power supply delivers excellent performance, low noise, and reliable heat dissipation, making it the ideal choice for professional and hobbyist applications alike.
Buy Triad 500 Power Supply now and experience unmatched reliability and performance for your industrial power management needs.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU16500?
You can click on the BUY or RFQ button to purchase WAU16500 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU16500?
You can download the WAU16500 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU16500?
TRIAD MAGNETICS
