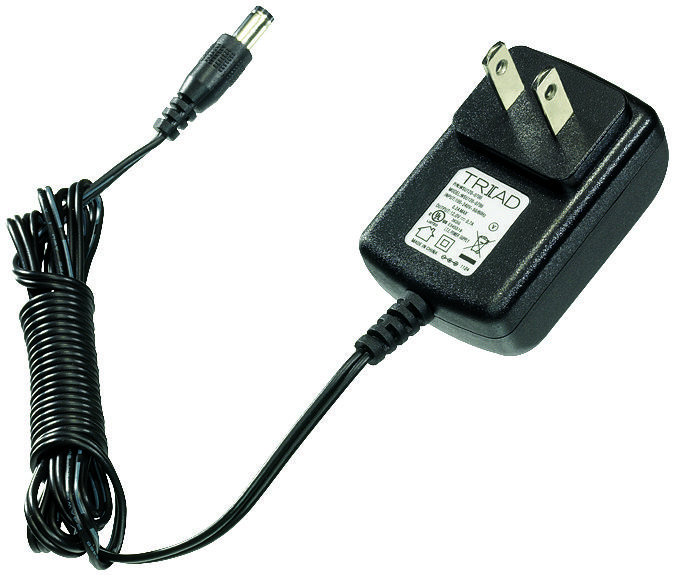

TRIAD MAGNETICS WSU090080013 Power Supply Module
The WSU090-0800-13 from Triad Magnetics is a compact wall plug-in switch mode power supply designed for reliable power delivery. It operates with a wide input voltage range from 100VAC to 240VAC at 50Hz/60Hz, providing a regulated 9VDC output with a maximum current of 0.8A and a power capacity of 7.2W. The power supply features high efficiency levels, UL and CSA safety certifications, and an enclosed thermoplastic case preventing tampering. It has a dielectric strength of 4KVDC for 60 seconds, a 5-foot output cord with 22 AWG wire, and supports temperatures from 0°C to +40°C, with a 2.5mm inner diameter and 5.5mm outer diameter output plug, making it ideal for power management and industrial applications.
TRIAD MAGNETICS WSU090080013 Power Supply Module Specifications:
- Input Voltage range: 100-240VAC, 50-60Hz
- Output Voltage: 9VDC
- Output Current: 0.8A
- Power Capacity: 7.2W
- Efficiency: Level IV and V
- Dielectric Strength: 4KVDC for 60 seconds
- Output Cord Length: 6 ft.
- Wire Gauge: 22 AWG
- Enclosure: Thermoplastic molded
- Operating Temperature Range: 0°C to +40°C
- Output Plug: 2.5mm inner diameter, 5.5mm outer diameter, 11mm length
- Polarity: Center positive
- Safety Certifications: UL, CSA
- EMI Compliance: FCC Part 15 Class B
- RoHS Compliant
- Over voltage and short circuit protected
- Warranty: 5 years
Buy the Buy Triad Wall Plug Power Supply Part Number WSU090080013 Online
Purchase the Triad Wall Plug Power Supply WSU090-0800-13 online today to benefit from reliable power delivery, high efficiency levels, safety certifications, and a durable thermoplastic case. Designed for applications requiring a 9VDC output with a maximum current of 0.8A, this compact power supply supports wide input voltage ranges from 100VAC to 240VAC. Its 6-foot output cord, dielectric strength of 4KVDC, and safety features make it an excellent choice for industrial, power management, and electronic device applications. Purchase now to ensure your equipment’s optimal performance and safety.
Order your Triad Series WSU090-0800-13 power supply today and ensure reliable power with high safety standards and durable construction for industrial and management applications.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WSU090080013?
You can click on the BUY or RFQ button to purchase WSU090080013 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WSU090080013?
You can download the WSU090080013 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WSU090080013?
TRIAD MAGNETICS
