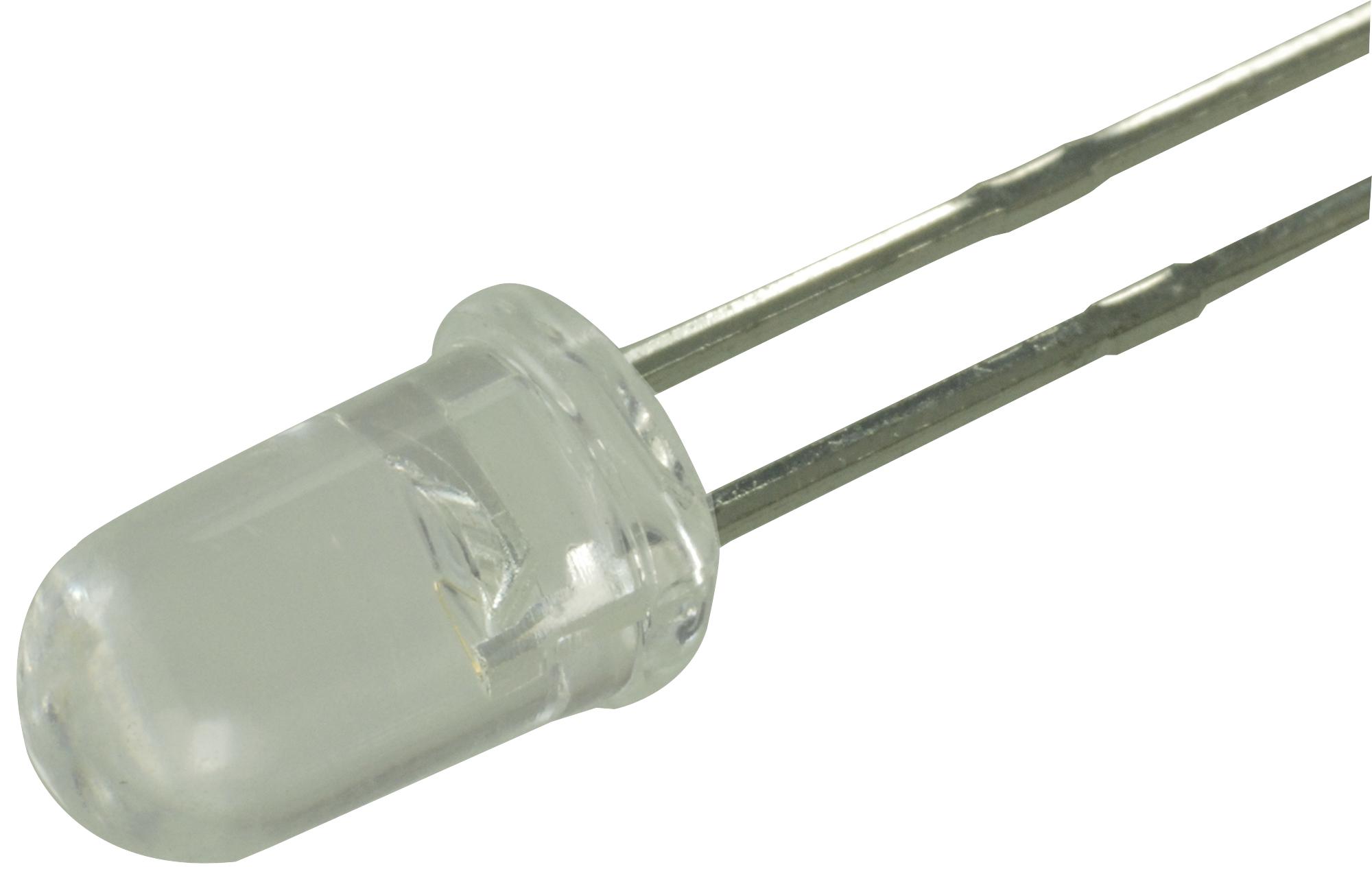

TT Electronics - Optek Technology OP295A Infrared LED
The OP295A is a gallium aluminium arsenide infrared light-emitting diode (LED) housed in an IR-transmissive package. Emitting at 890 nm, it aligns with silicon phototransistor spectral response. Designed for non-contact sensors, automation, safety, and end-of-travel applications, this LED provides higher power output than standard GaAs LEDs. Available in low-current and high-power variants, it features a 60° emission angle, operates in various power ranges, and offers excellent thermal characteristics with a silver-copper lead frame. Its versatility makes it suitable for machine automation, safety systems, and battery-powered devices, ensuring reliable IR emission for precise sensing.
TT Electronics - Optek Technology OP295A Infrared LED Specifications:
- Wavelength: 890 nm (center wavelength)
- Package Types: T-1%, TO-18, TO-46
- Emission Angle: 60° (OP293), 25° (OP298)
- Power Ranges: 5X greater than standard options for high power, adaptable to various applications
- Forward Current (Pulse): Up to 5A (OP295), 2A (OP296), 1A (OP297)
- Forward Voltage: 2.00 V (OP293), 4.00 V (OP290, OP294, OP295, OP297FAB, OP298 variants)
- Reverse Voltage: 2V (OP291, OP293, OP296, OP298), 5V (OP290, OP292, OP294, OP295, OP297, OP299)
- Peak Forward Currents: 5A (OP295), 2A (OP296), 1A (OP297), 2A (OP293, OP298)
- Operating Temperature Range: -40°C to +100°C
- Maximum Forward Current: 150 mA (OP290, OP291, OP292), 100 mA (OP294, OP295, OP299)
- Power Dissipation (Free Air): 333 mW (general), 142 mW (OP293, OP298)
- Lead Length: 0.06 inch shorter for cathode lead
- Spectral Response: Centered at 890 nm, ±10 nm bandwidth
- Soldering Temperature: 260°C for 5 seconds, 1/16 inch from case
- Storage Temperature Range: -40°C to +100°C
Buy the TT Electronics Series OP290 Infrared LED: OP295A
Purchase the TT Electronics OP295A infrared LED online today to enhance your sensing and automation projects. Featuring high power output at 890 nm, this LED ensures reliable performance in non-contact sensors, machine automation, safety systems, and battery-powered applications. Its versatile package options and excellent thermal characteristics make it ideal for compact, high-efficiency IR emission needs. Order now to benefit from fast delivery and ensure your projects operate with high precision and dependability.
Get TT Electronics OP295A infrared LED today—built for precision sensing and long-lasting durability.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OP295A?
You can click on the BUY or RFQ button to purchase OP295A from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OP295A?
You can download the OP295A datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OP295A?
TT Electronics - Optek Technology
