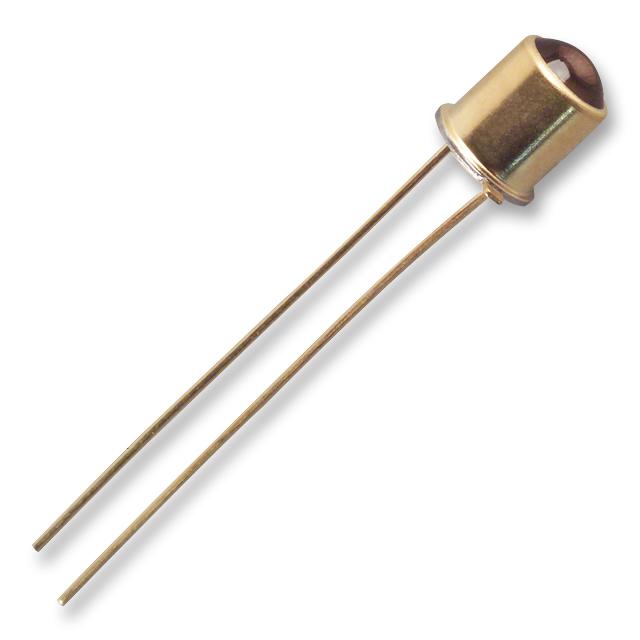

TT Electronics - Optek Technology OPV330 VCSEL Laser
The OPV330 is a vertical cavity surface emitting laser (VCSEL) in a T-1 package, utilizing 850 nm technology for high power and low drive current. Designed for sensing, optical encoding, and light curtain applications, it offers advantages over LEDs like lower power consumption, high thermal stability, and narrow beam angle. The flat lens allows for secondary optics. Its spectral and optical compatibility makes it ideal for non-contact sensing, emission surface, and photoelectric applications, providing reliable, efficient light sources in compact form factors.
TT Electronics - Optek Technology OPV330 VCSEL Laser Specifications:
- Wavelength: 840-860 nm
- Total Power Output: 15 mW at 7 mA
- Threshold Current: 3.0 mA
- Forward Voltage: 2.2 V
- Reverse Voltage: 5 V
- Maximum Forward Peak Current: 12 mA
- Pulsed Forward Current: 48 mA
- Storage Temperature Range: -40°C to +100°C
- Operating Temperature Range: 0°C to +85°C
- Beam Divergence: 20 Degrees FWHM
- Optical Bandwidth: 0.85 nm
- Series Resistance: 20-55 Ω
- Slope Efficiency: 0.28 mW/mA
- Wavelength Stability: 0.06 nm/°C
- Temperature Coefficient of Wavelength: 0.06 nm/°C
Buy the Buy TT Electronics VCSEL OPV330 Part Number OPV330 Online
Purchase the TT Electronics VCSEL laser OPV330 online today to enhance your sensing, optical encoding, or safety light curtain systems. This 850 nm laser offers high power output, low drive current, and excellent thermal stability in a compact T-1 package. Its compatibility with standard detectors and secondary optics makes integration straightforward. Ideal for non-contact position sensing, photoelectric sensors, and optical encoders, the OPV330 guarantees reliable performance and energy efficiency. Order now to improve your optical sensing projects with this advanced VCSEL solution.
Order your TT Electronics Series OPV330 laser in T-1 package today and upgrade your sensing, encoding, or light curtain systems with high efficiency and reliability.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPV330?
You can click on the BUY or RFQ button to purchase OPV330 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPV330?
You can download the OPV330 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPV330?
TT Electronics - Optek Technology
