TT Electronics - Optek Technology OP535A Silicon Photodarlington
The OP535A is a silicon NPN photodarlington packaged in a green plastic mold. It features a narrow reception angle that offers excellent on-axis coupling. This device is fully tested using infrared light to ensure close performance correlation with Opto Ken GaAs and GaAlAs emitters. Designed for applications requiring low light signal levels and higher current gain, it is ideal for use in portable devices, sensing, and instrumentation. The device is compact with a small package size and includes a 0.050-inch (1.27mm) lead spacing.
TT Electronics - Optek Technology OP535A Silicon Photodarlington Specifications:
- Package Style: T-1 epoxy mold
- Sensitivity Range: Narrow or wide receiving angles available
- Lead Spacing: 0.050 inches (1.27mm), 0.100 inches (2.54mm)
- Temperature Range: -40°C to +100°C
- Collector-Emitter Voltage: 30V (OP505, OP506, OP705), 15V (OP535)
- Collector Current: Up to 12 mA (OP505, OP506, OP705), 320 mA (OP535)
- Power Dissipation: 100 mW
- Saturation Voltage: 0.40V at 250μA collector current
- Collector Dark Current: Max 100 nA
- Saturation Voltage (OP535): 0.110 V (at 400 mA)
- Breakdown Voltages: Collector-Emitter 30V, Emitter-Collector 50V
- Soldering Temp: 260°C for 5 seconds
- Testing: 100% production tested with infrared light

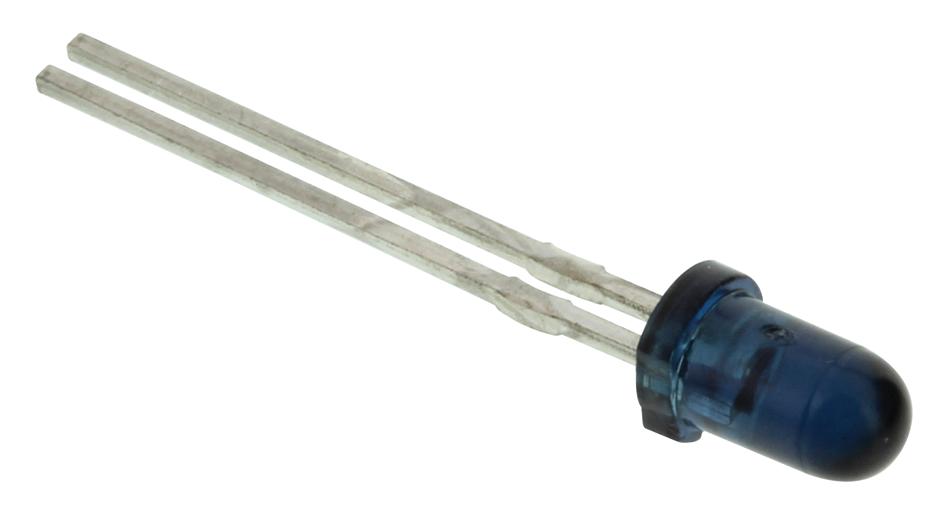

Buy the Buy TT Electronics OP535A Silicon Photodarlington Part Number OP535A Online
Purchase the TT Electronics OP535A online today and take advantage of its excellent on-axis coupling, narrow reception angle, and compact size suited for portable sensing and instrumentation. Fully tested with infrared light for consistent performance, it handles low light signals with high current gain. Its small package, 0.050-inch lead spacing, and robust temperature range make it ideal for space-constrained applications. Enjoy fast delivery and competitive pricing when you buy this high-quality photodarlington device directly online.
Buy TT Electronics OP535A photodarlington now and experience unmatched reliability and high current gain for sensing and portable applications.
