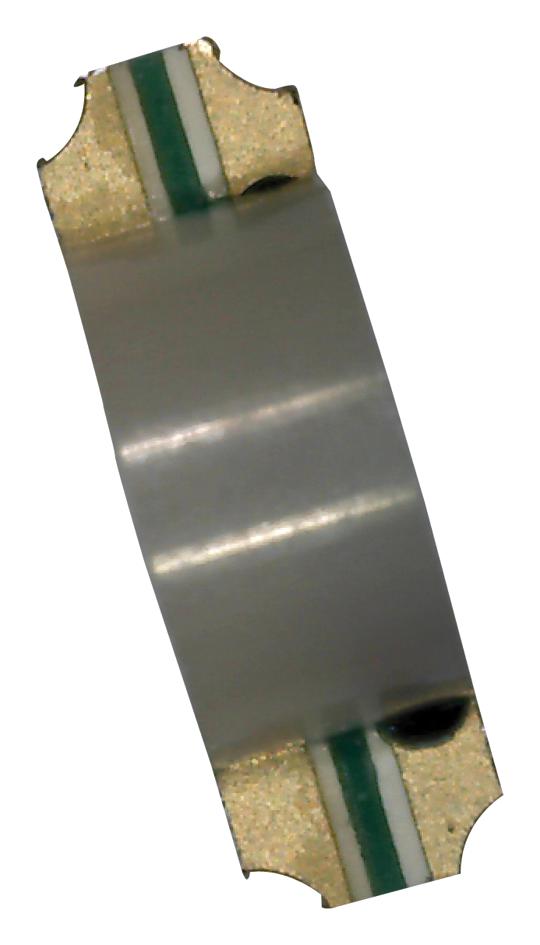

TT Electronics - Optek Technology OVSRRGBCC3 Multi-color SMD LED
The OVSRRGBCC3 is a multi-color SMD LED featuring red, green, and blue options with a white diffused dome lens and wide 150° viewing angle. It operates at wavelengths of 635nm for red, 535nm for green, and 475nm for blue, delivering luminous intensities of 75, 125, and 300 millicandelas. Suitable for high-density PCB layouts, it can be mounted as top or side-emitting. Compatible with automatic placement, infrared, and vapor phase reflow soldering. Ideal for LED lighting, communication devices, and portable electronics, with ESD precautions recommended.
TT Electronics - Optek Technology OVSRRGBCC3 Multi-color SMD LED Specifications:
- Luminous Intensity: 75, 125, 300 mcd
- Wavelengths: Red 635 nm, Green 535 nm, Blue 475 nm
- Viewing Angle: 150°
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -55°C to +100°C
- Peak Forward Current (10% duty cycle): Red 100 mA, Green 80 mA, Blue 80 mA
- Forward Voltage: Red 1.8 V, Green 3.2 V, Blue 3.2 V
- Reverse Voltage: 5 V
- Soldering Temperature (for 10 seconds): 260°C
- Electrostatic Discharge (ESD) Level: ±2000 V
- Material: InGaN for Green and Blue, AlInGaP for Red
- Compatible with automatic placement, IR and vapor phase reflow soldering
- Reel Dimensions: OVSRRGBCC3 - 2000 pieces/reel, OVSRRGBCC3TM - 1500 pieces/reel
Buy the TT Electronics OVSRRGBCC3 – Reliable Multi-color SMD LED for Industrial Applications
Purchase the TT Electronics OVSRRGBCC3 now and benefit from a compact, high-performance RGB LED suitable for diverse electronic applications. Designed for easy surface mounting, it provides consistent brightness, wide viewing angles, and compatibility with automatic placement and reflow soldering. Whether for LED lighting, telecommunications, or portable devices, this multi-color LED ensures reliable operation with high efficiency and durability. Order online today and elevate your electronic projects with this versatile, high-quality RGB LED component.
Order your TT Electronics OVSRRGBCC3 today and enhance your lighting and communication projects with dependable RGB LED lighting solutions.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OVSRRGBCC3?
You can click on the BUY or RFQ button to purchase OVSRRGBCC3 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OVSRRGBCC3?
You can download the OVSRRGBCC3 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OVSRRGBCC3?
TT Electronics - Optek Technology
