TT Electronics - Optek Technology OVLBB4C7 Round Through-Hole LED
The OVLBB4C7 is a 3mm high-intensity round through-hole LED lamp constructed with an iron alloy body and tin-plated leads. It features a UV-resistant epoxy lens, ensuring durability for outdoor applications, and provides a well-defined and uniform emission pattern. The LED offers high brightness and is suitable for signal processing, LED lighting, automotive, imaging, video, and vision applications. It is sensitive to electrostatic discharge (ESD) and requires proper handling. Due to market demand, lead times may be extended, and delivery dates can fluctuate. The product is not eligible for discounts.
TT Electronics - Optek Technology OVLBB4C7 Round Through-Hole LED Specifications:
- Dimensions: 3mm diameter, round shape
- Lens Material: UV-resistant epoxy
- Body Material: Iron alloy with tin-plated leads
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Forward Voltage: Blue 3.2-4.0V, Green 3.36-3.61V, Red 1.8-2.4V, Yellow 2.0-2.4V
- Luminous Intensity: Blue 1135-1800 mcd, Green 4360-8400 mcd, Red 2225-3700 mcd, Yellow 2225-3700 mcd
- Reverse Voltage: 5V Max
- Continuous Forward Current: Blue/Green 25mA, Red/Yellow 50mA
- Peak Forward Current (10% Duty Cycle): 100mA
- Power Dissipation: Blue/Green 100mW, Red/Yellow 120mW
- Lead Soldering Temperature: 260°C for 3 seconds
- Electrostatic Discharge Classification: Class 1C
- Luminescent Wavelength: Blue 460-475nm, Green 519-531nm, Red 620-630nm, Yellow 585-595nm
- Package Quantity: 500 pieces per bulk bag with desiccant

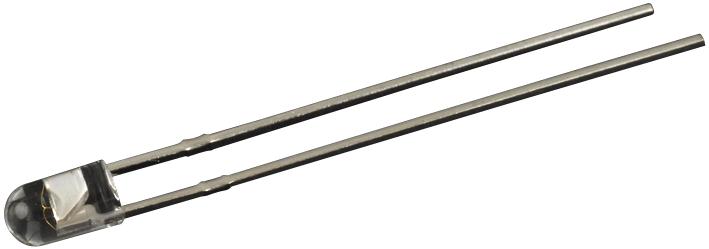

Buy the Optek Series LED: Round Through-Hole 3mm LED Lamp OVLBB4C7
Order the high-brightness round through-hole LED lamp from Optek today. Designed with UV-resistant epoxy and durable construction, it is ideal for outdoor, signage, automotive, and lighting applications. With a compact 3mm diameter, it offers excellent brightness, optimal emission patterns, and reliable performance across temperatures from -40°C to +100°C. Suitable for various environments, this LED delivers consistent luminous intensity, fast response, and easy handling to meet your project needs. Purchase online now for prompt delivery and exceptional quality.
Buy Optek Series OVLBB4C7 high-brightness LED lamp now and experience reliable outdoor illumination and signal clarity.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OVLBB4C7?
You can click on the BUY or RFQ button to purchase OVLBB4C7 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OVLBB4C7?
You can download the OVLBB4C7 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OVLBB4C7?
TT Electronics - Optek Technology
