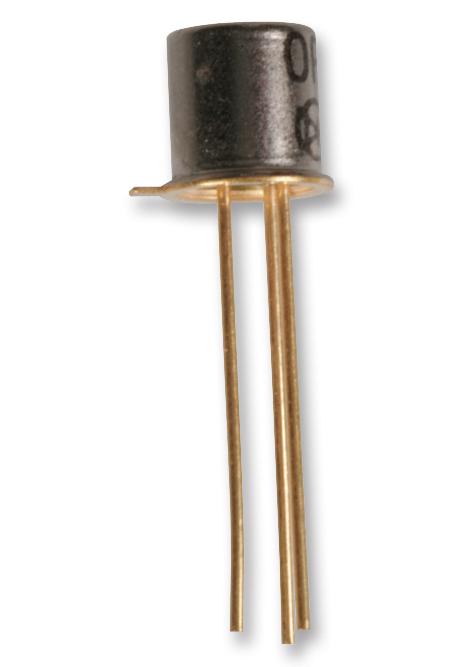

TT Electronics - Optek Technology OP802WSL NPN Phototransistor
The NPN phototransistor series includes hermetically sealed TO-18 packages with high power dissipation designed for hostile environments. Options include narrow and wide receiving angles, with models tested at 2870° K light sources for sensitivity. The series features both phototransistor and photodarlington types, suitable for space-limited and high-power applications. They are matched to LEDs such as OP130 and OP230, offering reliable performance with high temperature tolerance, making them ideal for demanding industrial, aerospace, and rugged environmental uses.
TT Electronics - Optek Technology OP802WSL NPN Phototransistor Specifications:
- Package Type: TO-18 hermetically sealed
- Maximum Storage Temperature: -65°C to +150°C
- Maximum Operating Temperature: -65°C to +125°C
- Collector-Base Voltage: 30 V (OP800SL only), 15 V (OP830SL)
- Collector-Emitter Voltage: 30 V (OP800 series), 15 V (OP830 series)
- Emitter-Base Voltage: 5 V (OP800 series only)
- Continuous Collector Current: 50 mA
- Power Dissipation: 250 mW
- Collector Dark Current: <100 nA (OP800SL), <1 nA (OP830SL)
- Response tested at 2870° K light source; sensitivity levels range from 1 to 5 depending on model
- Rise and Fall Times: approximately 7 µs
- Soldering Temperature: 260°C for 1.6 sec, with recommended RMA flux
- Operating Temperature Range: -65°C to +125°C
- Broad spectral response with Tested coupling characteristics for space-limited and high-power applications
Buy the TT Electronics Series OP800SL: NPN Phototransistor
Purchase the TT Electronics Series OP800SL or OP830SL hermetically sealed NPN phototransistors online today. These high-performance devices are ideal for space-limited, high-power, and hostile environment applications. They feature high power dissipation, various sensitivity levels, and robust construction. Easy to integrate into your projects, these phototransistors are tested at 2870° K to guarantee consistent performance. Whether for industrial, aerospace, or rugged systems, buy online now to achieve dependable operation with trusted quality from TT Electronics.
Order your TT Electronics Series OP800SL high-power NPN phototransistor today and ensure your designs achieve reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OP802WSL?
You can click on the BUY or RFQ button to purchase OP802WSL from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OP802WSL?
You can download the OP802WSL datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OP802WSL?
TT Electronics - Optek Technology
