TT Electronics - Optek Technology OVLFG3C7 Green Through-Hole LED

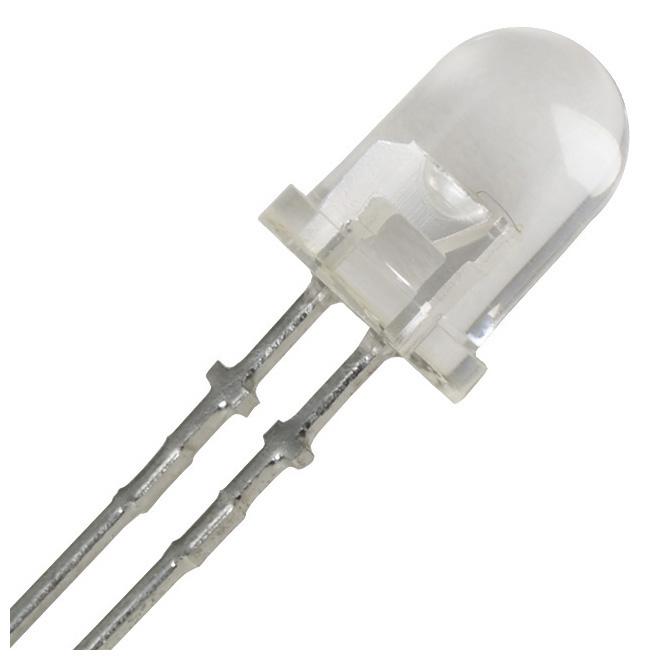

The OVLFG3C7 is a 5mm green round through-hole LED made of InGaN, featuring a water-clear lens. It offers high brightness with a luminous intensity of up to 16,000 mcd and a peak wavelength of 525nm, ideal for outdoor applications. The device has a 30° viewing angle and is UV-resistant, ensuring durability in harsh environments. Suitable for LED lighting, signage, automotive lighting, and signal indicators, it operates reliably within a -40°C to +100°C temperature range, with a maximum forward voltage of approximately 3.2V at 20mA.
TT Electronics - Optek Technology OVLFG3C7 Green Through-Hole LED Specifications:
- Luminous Intensity: 16,000 mcd typical at 20mA
- Peak Wavelength: 525 nm
- Lens Material: Water-clear epoxy
- Beam Angle: 30°
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Forward Voltage: 2.0V to 2.4V at 20mA
- Reverse Voltage: 5V
- Peak Forward Current: 100mA at 10% duty cycle
- Power Dissipation: 100 mW
- LED Material: InGaN
- Viewing Angle: 30 degrees
- Lead Material: Tin-plated, iron alloy
- Size: 5mm diameter
- Packaging: 500 pcs per bulk bag with desiccant
Buy the Buy TT Electronics Green LED Part Number OVLFG3C7 Online
Order the TT Electronics OVLFG3C7 green through-hole LED online today and enhance your projects with high brightness and durable UV-resistant epoxy lens. Perfect for outdoor signage, automotive indicators, and architectural lighting, this 5mm LED features a peak wavelength of 525nm and a 30° beam angle. Operating reliably from -40°C to +100°C, it offers excellent performance with a maximum forward voltage of around 3.2V at 20mA. Buy now and ensure your lighting solutions are bright, durable, and efficient.
Buy TT Electronics OVLFG3C7 now and experience unmatched reliability and bright green illumination for outdoor signage and automotive lighting.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OVLFG3C7?
You can click on the BUY or RFQ button to purchase OVLFG3C7 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OVLFG3C7?
You can download the OVLFG3C7 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OVLFG3C7?
TT Electronics - Optek Technology
