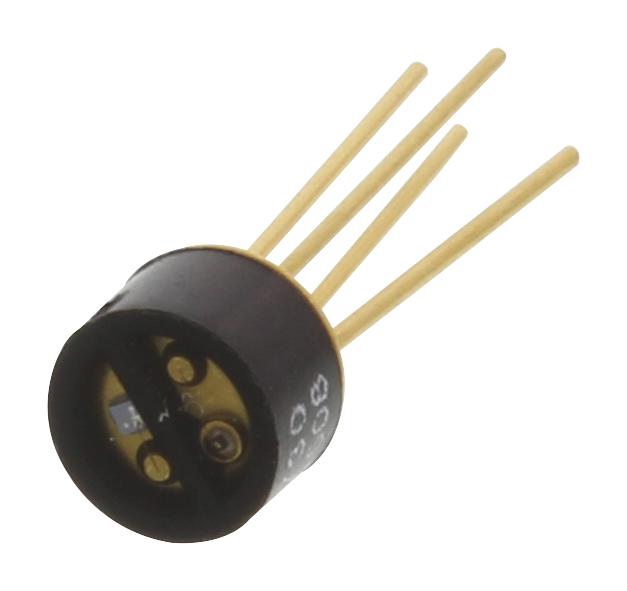

TT Electronics - Optek Technology OPB730 Reflective Object Sensor
The OPB730 series Reflective Object Sensor features a gallium arsenide infrared emitting diode and an NPN silicon phototransistor positioned side-by-side on parallel axes. Each sensor is encased in a black plastic sleeve filled with transparent epoxy, with the OPB730F variant incorporating a filter material into the epoxy to minimize ambient light interference. An internal barrier prevents direct infrared emission from reaching the detector. This sensor offers a photodarlington output and is unfocused, optimized for detecting diffuse surfaces. It is suitable for various applications such as sensing and instrumentation, automation and process control, safety systems, and industrial environments.
TT Electronics - Optek Technology OPB730 Reflective Object Sensor Specifications:
- Storage Temperature Range -20°C to +85°C
- Operating Temperature Range 0°C to +70°C
- Input Diode: Forward DC Current 50 mA, Peak Forward Current 300 pps/1 us pulse, Reverse DC Voltage 3 V, Power Dissipation 75 mW
- Output Photosensor: Collector-Emitter Voltage 30V (OPB710), 15V (OPB730), Collector DC Current 25 mA, Power Dissipation 150 mW
- Collector-Emitter Breakdown Voltage 30V (OPB710/OPB710F), 15V (OPB730/OPB730F), Emitter-Collector Breakdown Voltage 5V, Collector Dark Current 100 nA (OPB710/OPB710F), 250 nA (OPB730/OPB730F)
- Detection distance up to 250 inches with 935 nm wavelength, suitable for diffuse reflection sensing
- Package: F-Package mounted on standard TO-72 header, with epoxy encapsulation and optional filter material
- Sensing wavelength: 935 nm
- Ambient light filtering: Yes, especially in filtered models OPB710F and OPB730F
- RoHS compliant
Buy the Electronics Series Reflective Object Sensor: OPB730
Order the OPB730 Reflective Object Sensor online today for precise diffuse surface detection in industrial automation, safety, and instrumentation projects. Designed with a gallium arsenide infrared diode and an NPN silicon phototransistor, it offers reliable performance and a compact F-package mounted on a standard TO-72 header. Its buildup includes an internal barrier to prevent direct emission interference, and filtered models significantly reduce ambient light effects. Perfect for industrial environments, automation, and safety applications, ensuring durability and consistent sensing performance in various conditions.
Get OPB730 reflective object sensor today—built for industrial sensing, automation, and safety applications with reliable diffuse surface detection.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPB730?
You can click on the BUY or RFQ button to purchase OPB730 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPB730?
You can download the OPB730 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPB730?
TT Electronics - Optek Technology
