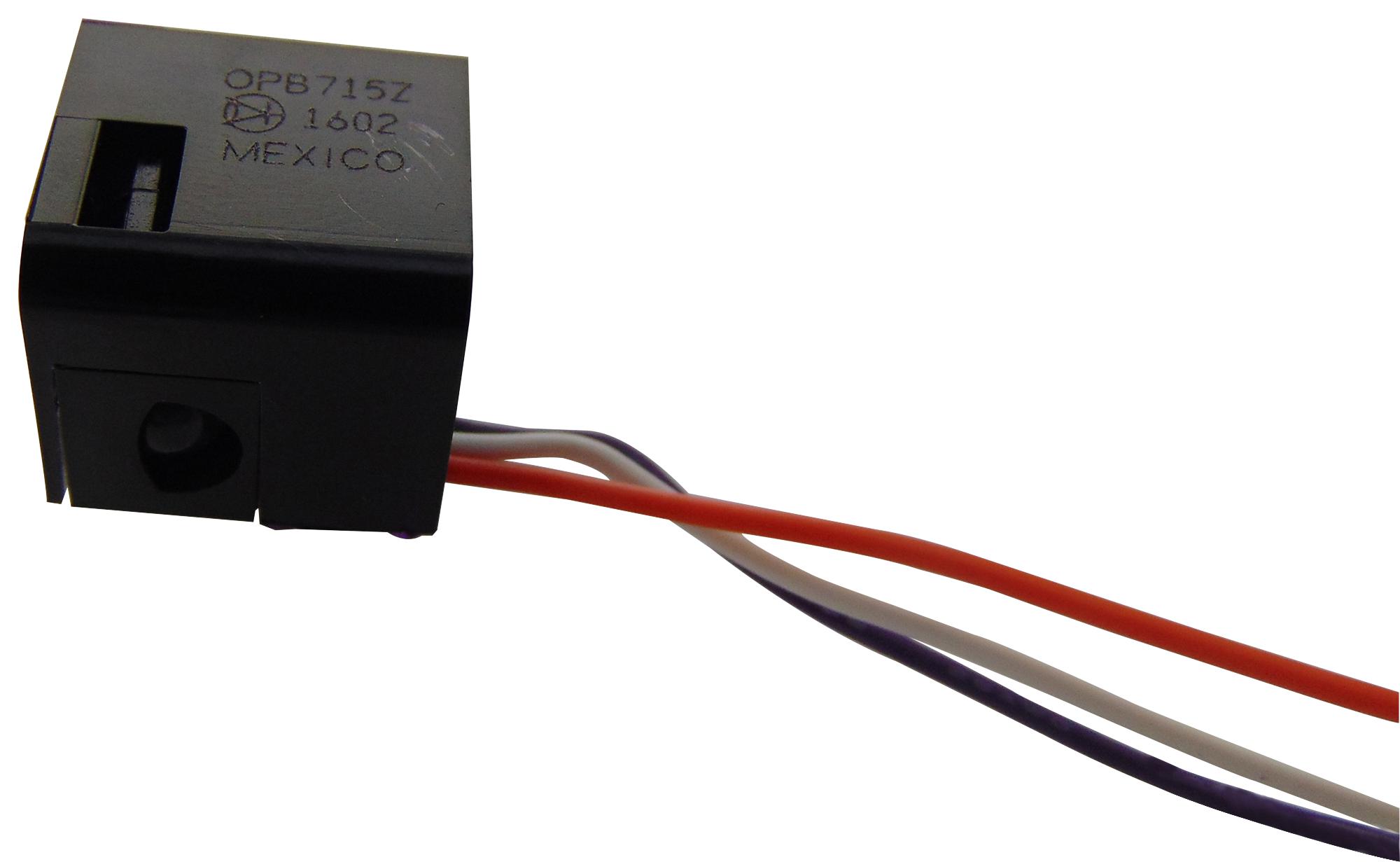

TT Electronics - Optek Technology OPB715Z Reflective Object Sensor
The OPB715Z series reflective sensor features a GaAlAs LED and a Photologic sensor housed in an IR transmissive panel mount case, designed for maximum sensitivity with a 0.5-inch sensing distance. It is suitable for replacing mechanical limit switches in industrial applications, providing long life and reliability. The sensor has an adjustable reflective distance based on reflectance material, with integrated circuitry for TTL or open-collector outputs. The sensor's plastic housing shields stray light, with an 18-inch UL-approved wire leads. It is ideal for automation and object detection tasks requiring precise proximity sensing.
TT Electronics - Optek Technology OPB715Z Reflective Object Sensor Specifications:
- Sensing Distance: 0.5 inches (12.7 mm)
- Housing: Panel mount, IR transmissive plastic
- Wire Length: 18 inches (457 mm), UL approved 26 AWG
- Wavelength: 890 nm
- Output Configurations: TTL Totem-Pole, Open-Collector, Inverted options
- Supply Voltage: 4.75V to 5.25V
- Current Consumption: Low, about 30-50 mA depending on output
- Maximum Supply Voltage: 10V (for 2 seconds)
- Operating Temperature: -40°C to +85°C
- Power Dissipation: 300 mW
- Absolute Max Voltage: 35V (Open-Collector output)
- Switching Distance Range: Varied based on reflectance, typically around 0.5 inches
- Certifications: RoHS Compliant
- Package: Panel mounting, rectangular opening 0.315” x 0.472”
- Material: Plastic housing shields against stray light and environmental interference
Buy the TT Electronics Series Reflective Object Sensor: OPB715Z
Order the TT Electronics OPB715Z reflective object sensor online today and benefit from a high-sensitivity, reliable detection solution. This panel-mounted sensor features an 890 nm wavelength LED, 0.5-inch sensing distance, and flexible output configurations including TTL and open-collector options. Its IR transmissive housing shields stray light for accurate detection of reflective objects in industrial automation, robotics, and manufacturing processes. With an 18-inch UL-approved wire lead, it offers easy installation and long-term durability, ensuring efficient performance for various proximity sensing needs.
Buy TT Electronics OPB715Z reflective sensor now and experience unmatched reliability and performance in object detection applications.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPB715Z?
You can click on the BUY or RFQ button to purchase OPB715Z from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPB715Z?
You can download the OPB715Z datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPB715Z?
TT Electronics - Optek Technology
