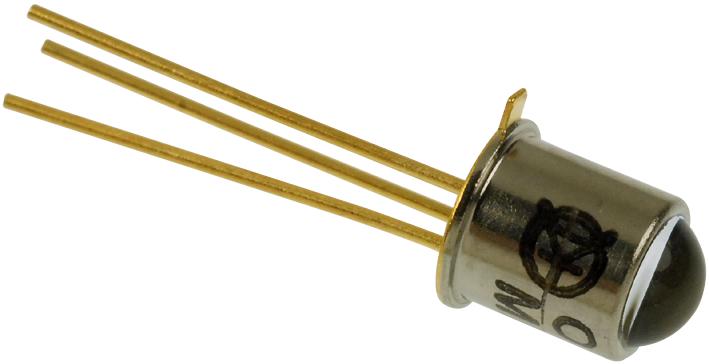

TT Electronics - Optek Technology OPL810 Hermetic Photologic Sensor
The OPL810 is a Photologic® Hermetic Sensor featuring TTL/TTL compatible logic level output, capable of driving up to 10 TTL loads with supply voltages ranging from 4.5V to 16V. It incorporates a monolithic integrated circuit that includes a photodiode, a linear amplifier, a voltage regulator, and a Schmitt trigger on a single silicon chip. The Schmitt trigger's hysteresis provides high immunity to noise on the input and supply voltage. The Photologic® chip is mounted on a standard T0-18 header and hermetically sealed in a lensed metal can, making it suitable for sensitive sensing and industrial applications. Key features include high noise immunity, direct TTL/TTL interface, and data rates up to 200 kBaud. It is mechanically and spectrally matched to the OP130 and OP230 series devices. Due to high market demand, delivery times may fluctuate, and the product is exempt from discounts.
TT Electronics - Optek Technology OPL810 Hermetic Photologic Sensor Specifications:
- Supply Voltage: 4.5V to 16V
- Output Load: Up to 10 TTL loads
- Maximum Output Voltage: 35V
- Output Current (High): 12 mA
- Output Current (Low): 16 mA
- Rise and Fall Time: 70 ns
- Propagation Delay: 5 µs
- Input Power: 0.50 mW/cm² to 160 mW/cm²
- Hermetically sealed in TO-18 package
- Temperature Range: -55°C to +105°C
- Spectral Response: Approximately 935 nm
- Dimension: Standard TO-18 header
- Output Voltage (High): 24V
- Output Voltage (Low): 0V
- Soldering Temperature: 260°C
- RoHS compliant
Buy the Buy TT Electronics OPL810 Part Number OPL810 Online
Order the TT Electronics OPL810 hermetic sensor online for reliable performance in industrial automation, machine safety, and non-contact reflective sensing. Equipped with high noise immunity, TTL compatible output, and spectral matching with OP130/OP230 series LEDs, it ensures consistent operation across a wide temperature range. Its hermetically sealed TO-18 package provides durability in harsh environments, making it ideal for critical sensing tasks. Experience fast response times and robust operation—purchase today for application-ready sensor solutions with proven quality and longevity.
Get TT Electronics OPL810 today—built for precision and long-lasting durability in industrial sensing applications.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPL810?
You can click on the BUY or RFQ button to purchase OPL810 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPL810?
You can download the OPL810 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPL810?
TT Electronics - Optek Technology
