TTElectronics - Welwyn MFC0603R009FT5 Ceramic Chip Resistor
The Metal Foil on Ceramic Chip Resistors from the MFC Series offer compact size and high reliability for power electronics. These resistors feature full RoHS compliance, with sizes ranging from 0603 to 4320, and provide excellent performance in high-temperature environments from -55°C to +155°C. They are resistant to industrial solvents, have a low TCR down to +30ppm/°C, and are ideal for current sensing and precision applications. High power density and robust construction ensure durability for demanding circuit conditions, making them suitable for automotive, industrial, and consumer electronics.
TTElectronics - Welwyn MFC0603R009FT5 Ceramic Chip Resistor Specifications:
- Size: 0603, 2817, 4320
- Power rating @70°C: 0.5 W (0603), 5 W (2817), 5 W (4320)
- Resistance range: 5 to 20 mΩ (0603), 3 to 150 mΩ (2817), 20 to 50 mΩ (4320)
- Tolerance: ±1%
- TCR: +30 ppm/°C
- Operating temperature: -55°C to +155°C
- Resistance stability: Overload 5x rated power for 5s, moisture, rapid temperature change, high/low temperature exposure, bend strength
- Construction: Metal foil bonded onto alumina substrate, protected, with wrap-around terminations
- Marking: 2817 & 4320 marked with ohmic value; 0603 unmarked
- Solder heat resistance: 260°C for 10s
- Insulation resistance: >100 MΩ at 100V DC
- Material: Metal foil, ceramic substrate
- Compliance: Pb-free, RoHS3

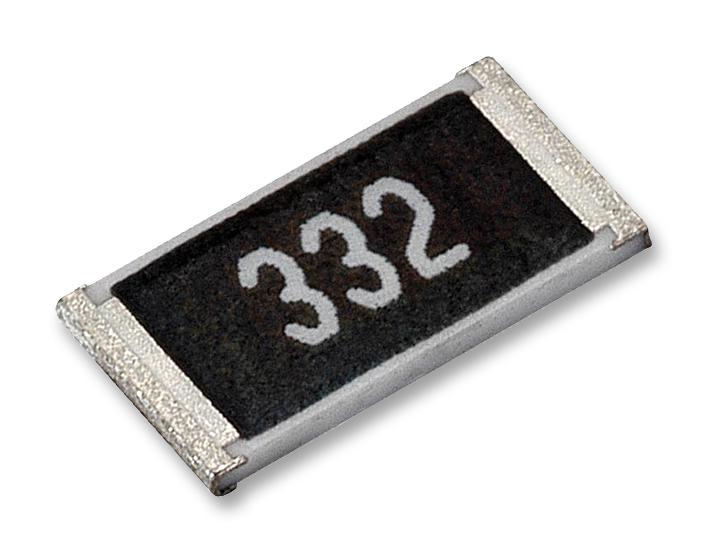

Buy the TT Electronics Series MFC Metal Foil on Ceramic Chip Resistors: MFC0603R009FT5
Purchase the TT Electronics MFC Series ceramic chip resistor online today for reliable performance in power electronic and sensing applications. Featuring compact size, low TCR of +30ppm/°C, and resistance range from 5 to 150 milliohms, these resistors are suitable for demanding industrial, automotive, and consumer electronics. They are RoHS compliant, resist high temperature up to 155°C, and are protected against industrial solvents. Enjoy fast shipping and ease of ordering for precision and durability in your electronic designs.
Buy TT Electronics MFC0603R009FT5 now and experience unmatched reliability and high temperature stability for power electronics applications.
