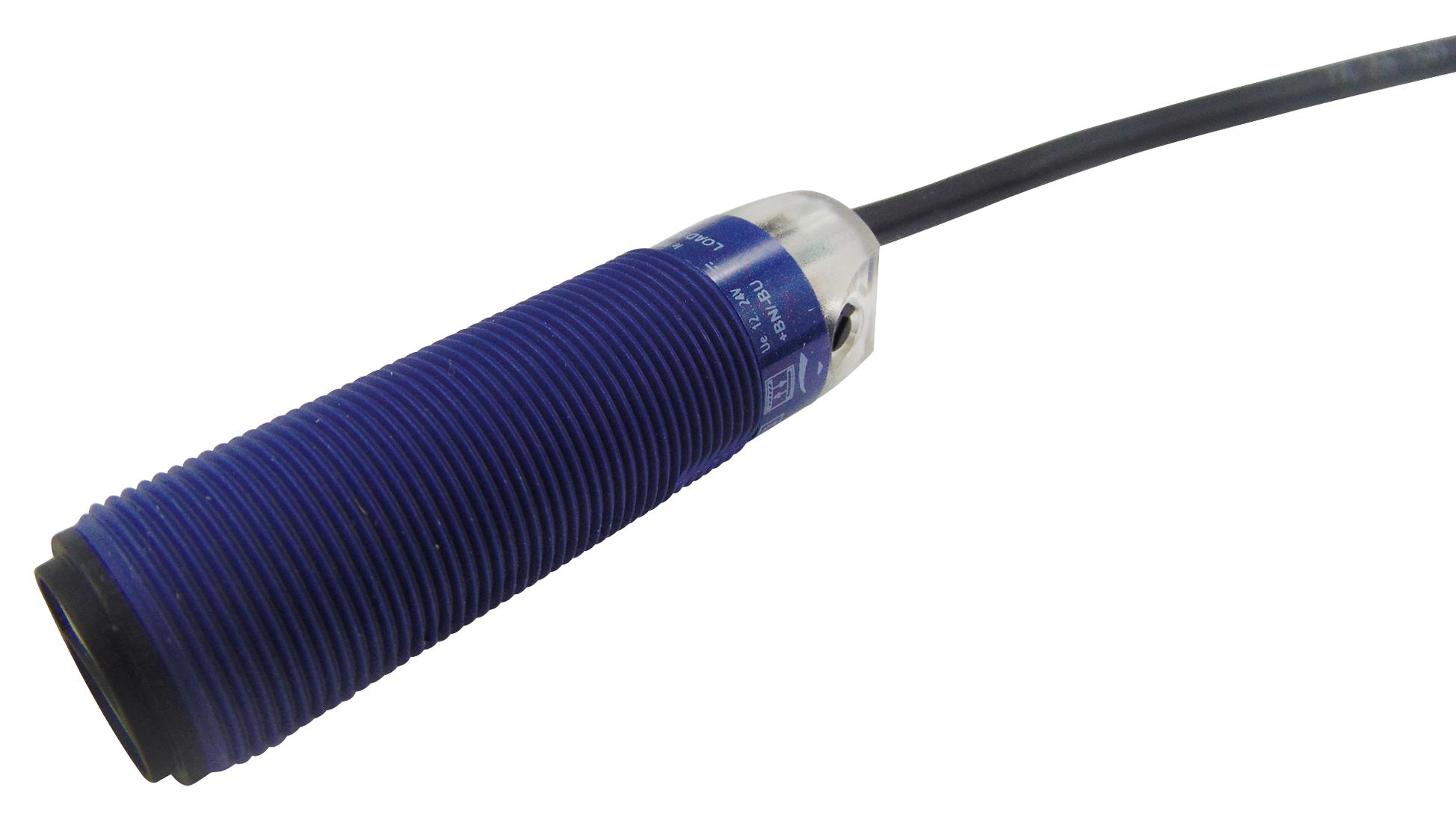

Telemecanique Sensors XUK8AKSNM12 Photo-electric Laser Sensor
The photo-electric laser sensor XUK8AKSNM12 offers reliable diffuse detection with background suppression, suitable for industrial automation. Equipped with infrared laser emission, it can detect objects at a maximum distance of 1 meter with high precision, featuring a compact design of 50 x 50 mm. The sensor supports PNP or NPN discrete output types and incorporates environmental protections like IP65 rating, vibration, and shock resistance. Its adjustable sensitivity and quick response time make it ideal for applications requiring accurate object presence detection in various industrial settings.
Telemecanique Sensors XUK8AKSNM12 Photo-electric Laser Sensor Specifications:
- Detection system: Diffuse with background suppression
- Emission: Infrared laser, modulated
- Maximum sensing distance: 3.28 ft (1 m)
- Object detection diameter: 0.08 in (2 mm)
- Supply voltage: 12-24 V DC (10-36 V DC limits)
- Output type: PNP or NPN, discrete, NO or NC programmable
- Electrical connection: Male connector M12, 4 pins
- Material: Plastic enclosure, PMMA lens
- Ingress protection: IP65, double insulation
- Vibration resistance: 7 gn +/- 1.5 mm 10-55 Hz
- Shock resistance: 30 gn 11 ms
- Operating temperature: -4 to 140 °F (-20 to 60 °C)
- Storage temperature: -22 to 158 °F (-30 to 70 °C)
- Switching frequency: 250 Hz
- Response delay: 2 ms, recovery: 2 ms
- Certifications: CE, Ecolab
- Weight: 0.08 Ib (0.035 kg)
Buy the Schneider Electric XUK8AKSNM12 – Reliable Photo-electric Laser Sensor for Industrial Applications
Order the Schneider Electric XUK8AKSNM12 photo-electric laser sensor online and enjoy reliable diffuse detection with background suppression. Its infrared laser emission ensures precise object detection up to 1 meter, ideal for automation systems. The compact design (50 x 50 mm), IP65 rated enclosure, and adjustable sensitivity make installation versatile across different industrial settings. With quick response times, vibration and shock resistance, and easy wiring via M12 connector, this sensor is perfect for reliable, long-term operation in demanding environments.
Get Schneider Electric XUK8AKSNM12 today—built for precise object detection with quick response suitable for harsh industrial environments.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XUK8AKSNM12?
You can click on the BUY or RFQ button to purchase XUK8AKSNM12 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XUK8AKSNM12?
You can download the XUK8AKSNM12 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XUK8AKSNM12?
Telemecanique Sensors
