Telemecanique Sensors XU9M18MB230 Photo-electric sensor

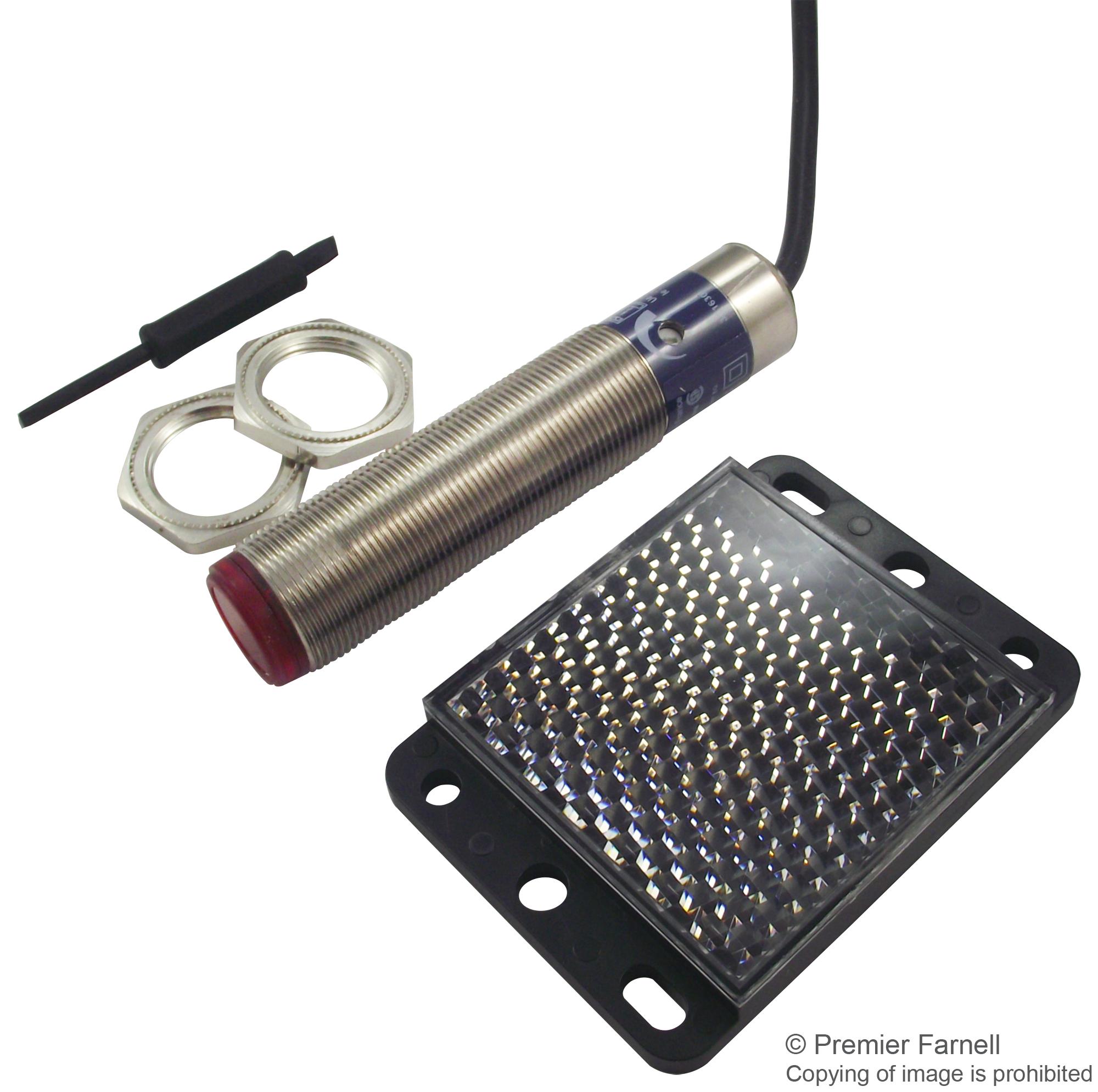

The photo-electric sensor XU9M18MB230 from the OsiSense XU series is a cylindrical M18 device designed for polarised reflex detection. It features a nickel-plated brass enclosure, a PMMA lens, and operates on 24-240VAC/DC power with cable wiring. The sensor has a maximum sensing distance of 9.84 ft (3m) and an emission of red polarised reflex using reflector XUZC50. It includes LED indicators, sensitivity adjustment, and supports ON/OFF discrete switching. With UL, CSA, and CE certifications, it suits automation and industrial sensing applications in harsh environments.
Telemecanique Sensors XU9M18MB230 Photo-electric sensor Specifications:
- Sensor Type: Photo-electric, polarised reflex
- Material: Nickel-plated brass enclosure, PMMA lens
- Detection Distance: Max 9.84 ft (3m), Nominal 6.56 ft (2m)
- Supply Voltage: 24-240V AC/DC (20-264V range)
- Output: Discrete, solid state, NC
- Wiring: 2-wire cable, 2m length
- Environmental: IP67, resistant to vibrations of 7 gn, shock 30 gn
- Temperature Range: Operational -13 to 131 °F (-25 to 55 °C), Storage 0 to 158 °F (-40 to 70 °C)
- Certifications: UL, CSA, CE
- Switching Frequency: <= 25 Hz
- Delay: Max delay first up 300 ms, response 20 ms
- Dimensions: 3.74 in (95 mm) length, 0.71 in (18 mm) diameter
- Weight: 0.21 lb (0.095 kg)
- Vibration Resistance: 7 gn +/- 1.5 mm (10-55 Hz)
Buy the Buy Schneider Electric Photo-Electric Sensor Part Number XU9M18MB230 Online
Purchase the Schneider Electric XU9M18MB230 photo-electric sensor online today. This durable and reliable polarised reflex sensor features a 24-240VAC/DC supply, a detection range of up to 9.84 ft, and an IP67 enclosure suitable for harsh industrial environments. Its solid-state NC output, sensitivity adjustment, and dual LED indicators make it ideal for automation, material handling, and safety applications. Secure your order now and ensure consistent, high-quality sensing performance for your industrial projects.
Order your Schneider Electric Series XU9M18MB230 photo-electric sensor today and enhance your automation projects with a reliable polarised reflex device.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XU9M18MB230?
You can click on the BUY or RFQ button to purchase XU9M18MB230 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XU9M18MB230?
You can download the XU9M18MB230 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XU9M18MB230?
Telemecanique Sensors
