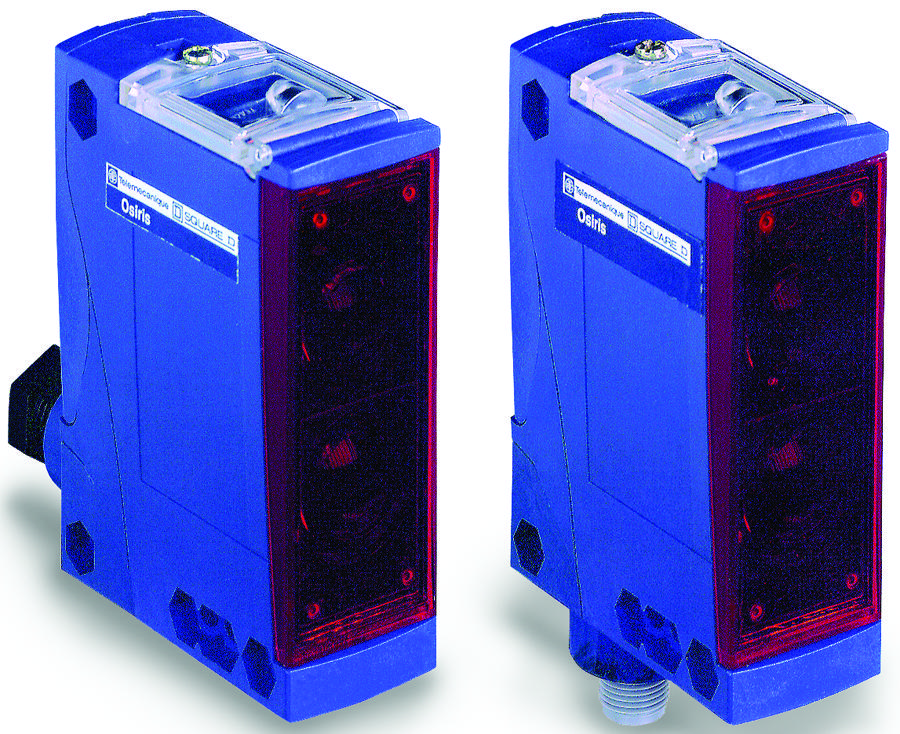

Telemecanique Sensors XUX0ARCTT16 Optical Sensor
The OsiSense XUX0A series offers versatile multimode optical sensors suitable for industrial sensing tasks. Designed for simplicity, these sensors support various detection modes including diffuse, background suppression, reflex, and through-beam. They feature an intuitive Teach mode for automatic configuration, enabling easy setup without complex adjustments. With a compact design, robust enclosure materials, and flexible output options, these sensors are ideal for measurement, automation, and instrumentation environments. They comply with safety standards like UL, CE, and CSA, ensuring reliable performance in diverse industrial settings.
Telemecanique Sensors XUX0ARCTT16 Optical Sensor Specifications:
- Detection system: Multimode (Diffuse, background suppression, reflex, through-beam)
- Material: Plastic enclosure, PMMA lens, PBT
- Supply voltage: 24...240 V AC/DC
- Output type: Discrete relay, NO or NC programmable
- Wiring: Screw-clamp terminals, 1.5 mm² or 0.75 mm² cable entry for M16 gland
- Maximum sensing distance: 11 m polarised reflex, 3 m diffuse, 60 m thru beam
- Electrical life: 500,000 cycles at 250 V, 0.5 A, 60 cycles/min
- Ambient temperature (operation): -25°C to 55°C
- Vibration resistance: 7 gn +/- 1.5 mm, 10-55 Hz
- Shock resistance: 30 gn for 11 ms
- Ingress protection: IP65, IP67
- Dimensions: 92 x 71 x 36 mm, Net weight: 0.2 kg
- Certifications: UL, CE, CSA
- Switching capacity: 0.5 A at 250 V, cos φ=0.4; 3 A at 250 V, cos φ=1
- Response time: Max 25 ms
- Environmental: Suitable for industrial environments with vibration and shock resistance
Buy the Buy Schneider Electric XUXOARCTT16 Part Number XUXOARCTT16 Online
Enhance your industrial detection setup with the Schneider Electric Optical Sensor. This versatile sensor offers multiple detection modes, including diffuse, background suppression, reflex, and through-beam, all easily configurable via Teach mode. Its compact, durable design ensures reliable performance in harsh environments, supported by certifications like UL, CE, and CSA. Whether for measurement or automation, this sensor adapts seamlessly to your needs. Purchase online now to benefit from fast delivery and competitive pricing, ensuring your projects stay on track with dependable sensing technology.
Order your Schneider Electric XUXOARCTT16 multimode optical sensor today and ensure precise, reliable detection for your industrial automation projects.
