Telemecanique Sensors XS512B1MBL2. Datasheet & Stock

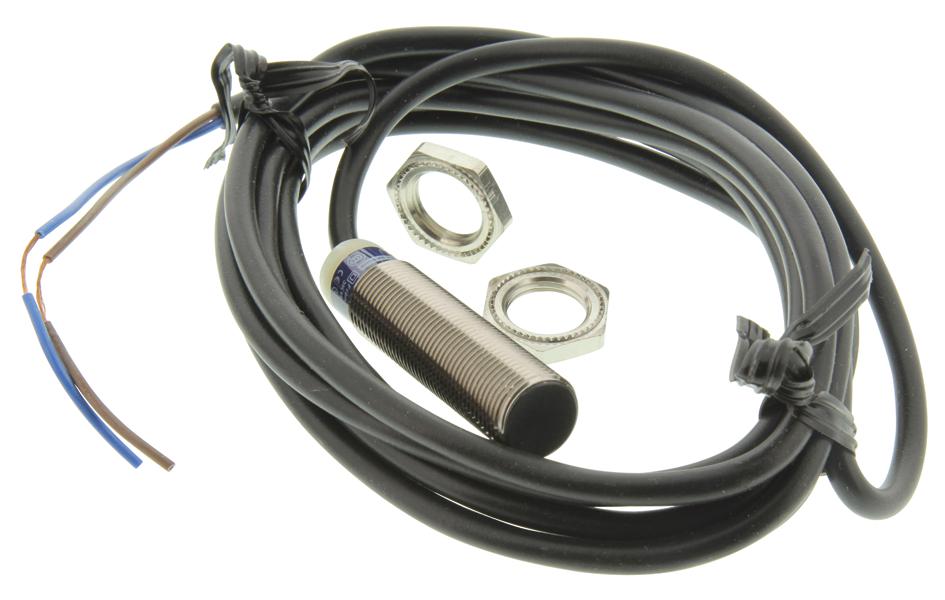

The XS512B1MBL2 from Schneider Electric / Telemecanique is a general purpose OsiSense XS inductive proximity sensor XS5 for non contact sensing of metal objects. It features best in class quality and immunity to harsh industrial environments. An inductive proximity sensor is comprises an oscillator whose windings constitute sensing face. An alternating magnetic field is generated in front of these windings. When a metal object is placed within magnetic field generated by sensor, the resulting currents induced form additional load and oscillations cease. This causes output driver to operate and depending on sensor type (NO or NC output signal). This sensor enables detection without physical contact of metals. Its range of applications includes monitoring position of machine parts (cams, end stops) and counting presence of metal objects. It also used in assembly machines, machine tools, machining, packaging, materials handling, conveying, food and beverage industry.




53mm size, fixed body, flush mountable detector, metal material, pre-cabled (L = 2m)

Discrete output signal, 2-wire wiring technique, 1 NC discrete output function, small size

2 nominal sensing distance, AC/DC output circuit type, cylindrical M12 design, M12 x 1 thread type

0 to 1.6mm operating zone, 1 to 15% of Sr differential travel, PvR wire insulation material

Rated supply voltage from 24V to 240V AC/DC with reverse polarity protection, weight is 0.075Kg

Switching capacity is 5mA to 200mA AC/DC

IP68 double insulation conforming to IEC 60529, IP69K conforming to DIN 40050 degree of protection

Frontal detection face, PPS front material, nickel plated brass enclosure material



CE marked, UL and CSA certified, -25°C to 70°C ambient air temperature for operation





Applications


Automation & Process Control,

Industrial,

Robotics,

Sensing & Instrumentation
