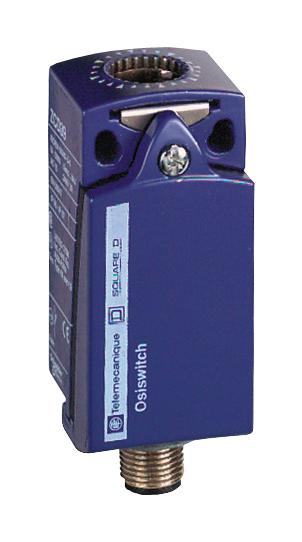

Telemecanique Sensors ZCD21M12 industrial limit switch
The ZCD21M12 limit switch features a compact fixed body made of Zamak, equipped with male M12 5-pin connector, and offers 1NC+4NO snap action contacts. It operates with a minimum actuation speed of 0.03 ft/s and is suitable for industrial automation with high durability, rated for 5 million cycles in DC-13 at 24V and 48V. The device includes silver-plated contacts, and insulation ratings up to 300 V UL and 500 V IEC. Dimensions are 1.22 in width, 2.56 in height, and 1.18 in depth, making it ideal for harsh environments over a wide temperature range.
Telemecanique Sensors ZCD21M12 industrial limit switch Specifications:
- Body material: Zamak
- Contacts: 1NC + 4NO, silver plated, snap action
- Electrical connection: Male connector M12, 5 pins
- Rated insulation voltage: 300 V UL, 500 V IEC
- Maximum resistance: 25 mOhm
- Rated impulse withstand voltage: 6 KV IEC 60664
- Short-circuit protection: 10 A cartridge fuse
- Operating temperature: -25°C to 70°C
- Dimensions: Width 1.22 in, Height 2.56 in, Depth 1.18 in
- Durability: 5 million cycles DC-13 at 24V/48V
- Rated operational current: 3A at 50 V AC-15, 0.27A at 50 V DC-13
- Conventional thermal current: 4A
- Ambient temperature for operation: -25°C to 70°C
- Environmental: Suitable for industrial use with IP rated options
Buy the Schneider ZCD21M12 – Reliable Limit Switch for Industrial Applications
Purchase the Schneider ZCD21M12 limit switch online today to enhance your automation systems. This compact, durable device features 1NC + 4NO contacts, a Zamak body, and a M12 5-pin connector, designed for high-performance industrial environments. Rated for 5 million cycles, with excellent insulation and resistance ratings, it offers reliable switching in harsh conditions. Ideal for machinery, automation, and control systems, this switch provides quick, precise operation, ensuring safety and efficiency. Order now for fast delivery and trusted performance.
Order your Schneider ZCD21M12 limit switch today and ensure your machinery benefits from high durability, precise switching, and reliable operation.
Frequently Asked Questions
Where can I buy Telemecanique Sensors ZCD21M12?
You can click on the BUY or RFQ button to purchase ZCD21M12 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part ZCD21M12?
You can download the ZCD21M12 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of ZCD21M12?
Telemecanique Sensors
