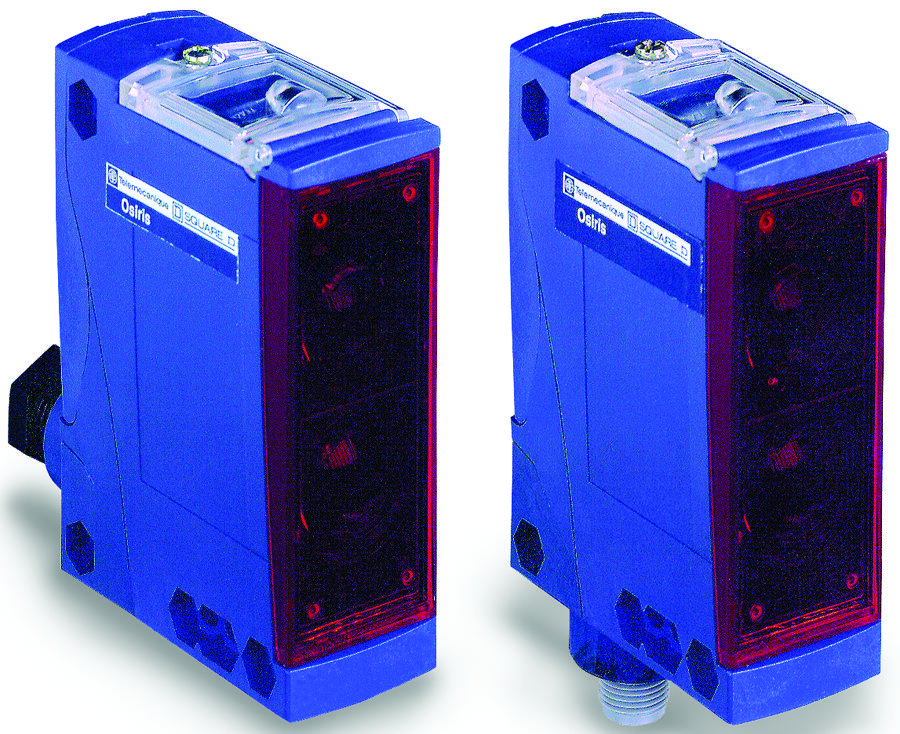

Telemecanique Sensors XUX0AKSAT16 Photo-Electric Sensor
The XUXOAKSAT16 photo-electric sensor is a compact, multi-mode device designed for general purpose detection in industrial automation. Featuring infrared diffuse, background suppression, thru-beam, and polarized reflex sensing options, it offers precise detection over distances up to 40 meters. Built with durable plastic and molded PMMA lens, it is IP65/IP67 rated for harsh environments. The sensor operates on 12-24V DC, providing discrete PNP/NPN outputs with LED status indicators, and includes screw-clamp terminals for reliable wiring, making it ideal for various automation applications.
Telemecanique Sensors XUX0AKSAT16 Photo-Electric Sensor Specifications:
- Sensor dimensions: 92 x 71 mm
- Material: Plastic enclosure, PMMA lens
- Detection distance: up to 40 m for thru-beam, 11 m for polarized reflex, 1.3 m diffuse with background suppression
- Electrical connectivity: Screw-clamp terminals, 1.5 mm²
- Supply voltage: 12-24 V DC, reverse polarity protected
- Output type: Discrete PNP/NPN solid state
- Maximum switching capacity: <= 100 mA with overload and short-circuit protection
- Switching frequency: <= 250 Hz
- Response delay: 2 ms; Delay at initial power-up: 200 ms
- Environmental ratings: IP65/IP67, UL, CSA, CE certified
- Operating temperature: -25°C to +55°C, Storage: -40°C to +70°C
- Vibration resistance: 7 gn, Shock resistance: 30 gn, Wiring: via M12 or screw terminals
Buy the Schneider Series XU Photo-Electric Sensor: XUXOAKSAT16
Order the Schneider Electric XUXOAKSAT16 photo-electric sensor online today for reliable, versatile detection solutions in industrial automation. Designed for durability and precision, this sensor features multiple detection modes including diffuse, background suppression, and thru-beam. Operating on 12-24VDC, it provides discrete outputs and LED status indicators, ensuring easy integration into your system. With robust IP65/IP67 ratings, it withstands harsh environments, offering long-term performance. Purchase now to enhance your automation setup with this high-quality, easy-to-install sensor designed for diverse industrial applications.
Get Schneider XUXOAKSAT16 today—built for precision and long-lasting durability in industrial detection systems.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XUX0AKSAT16?
You can click on the BUY or RFQ button to purchase XUX0AKSAT16 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XUX0AKSAT16?
You can download the XUX0AKSAT16 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XUX0AKSAT16?
Telemecanique Sensors
