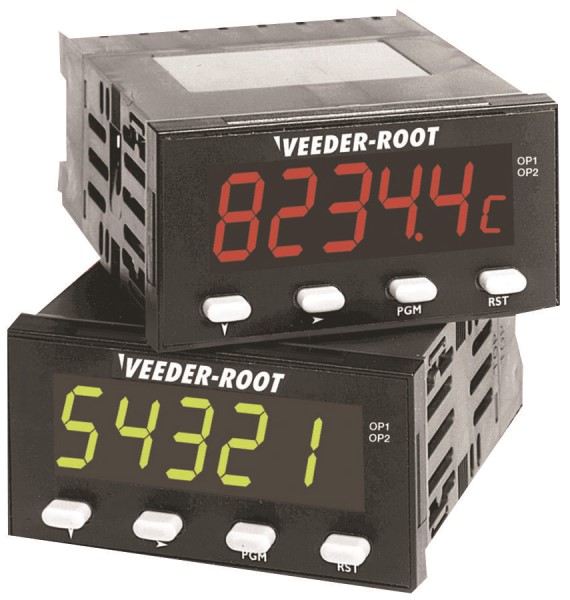

Veeder Root C62881002 Preset and Batch Counter
The Veeder Root C628 Preset & Batch Counter is a versatile 1/8 DIN instrument designed for monitoring and controlling critical values in industrial processes. Featuring a large, color-change LED display, the C628 provides instant visual alerts to changes in application status. Available in single, dual preset, and batch models, it offers programmable latched or timed output operation, independent display of background totals, and a choice of input types. The C628 is suitable for a wide range of applications including counting, positioning, and length measurement, and is CE approved and UL recognized.
Veeder Root C62881002 Preset and Batch Counter Specifications:
- Display_Height: 0.71" (18mm)
- Secondary_Display_Height: 0.3" (7mm)
- Count_Input_Frequency: 10 kHz max.
- Logic_Low_Voltage: ≤ 2.0 VDC
- Logic_High_Voltage: ≥ 3.0 VDC
- Count_Input_Impedance: 10 K Ω (Sourcing), 4.7 K Ω (+Voltage - Sinking)
- Multiplier_Range: 0.0001 to 9.9999
- Control_Input_Impedance: 4.7 K Ω to +Voltage
- Control_Input_Response_Time: 25 ms
- Output_Type_NPN: NPN open collector, 30 VDC max., 100 mA max.
- Output_Type_Relay: SPDT, 2 amp resistive @ 110 VAC
- Output_Latency: 75 seconds + 8 ms (relay pull-in)
- Communication_Protocol: Serial asynchronous, UART to UART; Open ASCII
- Baud_Rate: 9600, 4800, 2400, or 1200
- Filter_Speed: Settable for 20, 200 or 10,000 Hz
- Supply_Voltage: 90-264 VAC, 50/60 Hz, or 20-50 VAC/VDC
- Accessory_Power_Supply: 9-15 (unregulated VDC), 125 mA max.
- Dimensions: 48mm x 96mm, 110mm deep
- Mounting_Cutout: 45mm x 92mm
- Front_Panel_Rating: NEMA 4X/IEC IP65
- Case_Material: GE Lexan 940
- Weight: 0.56 lbs.
- Operating_Temperature: 0° to 55° Celsius, 32° to 131° Fahrenheit
- Storage_Temperature: -20° to 80° Celsius, -4° to 176° Fahrenheit
- Relative_Humidity: 20% to 95% non-condensing
- Approvals: CE; UL, CUL recognized
