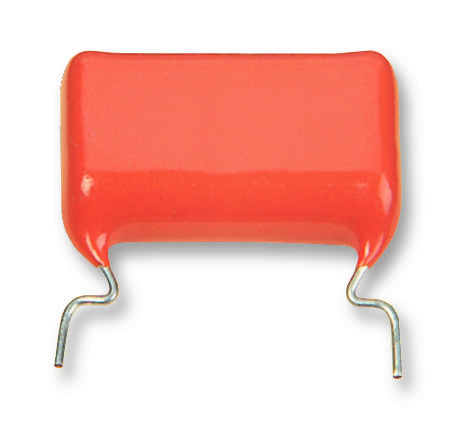

Vishay BFC237530103 High-Voltage Film Capacitor
This product is a high-voltage metallized polypropylene film capacitor designed for use in demanding industrial and electronic applications. It features a robust construction with metallized electrodes and aluminum layers, offering excellent stability, low loss, and reliable performance at high voltages up to 2000 V. Suitable for deflection circuits in televisions and high-current pulse environments, it is encapsulated in flame-retardant epoxy and complies with RoHS and Halogen-Free standards. The capacitor is mounted on printed-circuit boards with automatic insertion options and is tested to stringent climatic and electrical performance specifications.
Vishay BFC237530103 High-Voltage Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized and aluminum
- Construction: Internal serial construction
- Rated DC Voltage: 630 V, 1000 V, 1600 V, 2000 V
- Rated AC Voltage: 300 V, 400 V, 500 V, 600 V
- Rated Peak-to-Peak Voltage: 850 V, 1100 V, 1400 V, 1700 V
- Capacitance Range: 0.1 nF to 270 nF (E24 Series)
- Capacitance Tolerance: ±5%
- Max Temperature: 105°C, operating temperature: 85°C
- Insulation Resistance: > 100,000 MΩ at 500 V
- Vibration Resistance: Meets IEC 60068-1 standards
- Encapsulation: Flame retardant epoxy (UL 94 V-0)
- RoHS & Halogen-Free compliant
- Lead Material: Tinned wire
- Physical Dimensions: Range from approximately 5.0x14.5x18.5 mm to 13.5x29.5x30 mm depending on capacitance
Buy the Buy Vishay Capacitor Part Number BFC237530103 Online
Purchase the Vishay high-voltage polypropylene film capacitor BFC237530103 online today and benefit from fast delivery, competitive pricing, and trusted quality. Designed for demanding applications, it offers rated voltages up to 2000 V, excellent stability, and low loss. Its robust construction features metallized electrodes and flame-retardant epoxy encapsulation, ensuring durability and safety in industrial and electronic environments. Whether for television deflection circuits or high-current pulse applications, this capacitor provides dependable performance and long-term stability in your project.
Order your Vishay high-voltage polypropylene film capacitor BFC237530103 today and ensure reliable, high-performance operation in your high-current pulse and deflection circuits.
Frequently Asked Questions
Where can I buy Vishay BFC237530103?
You can click on the BUY or RFQ button to purchase BFC237530103 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC237530103?
You can download the BFC237530103 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC237530103?
Vishay
