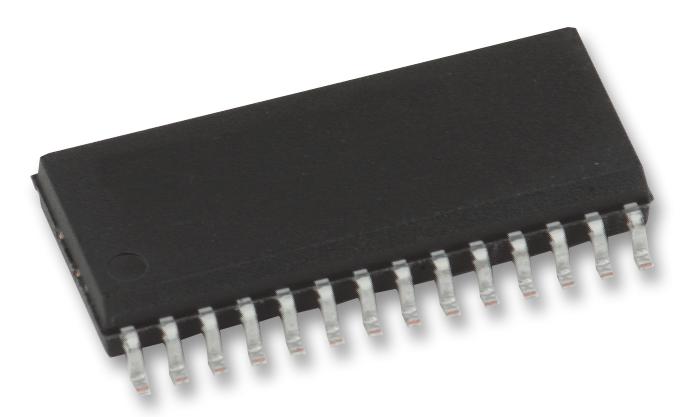

Vishay DG506BEWT1GE3 CMOS Multiplexer
The DG506B and DG507B are high-performance CMOS analog multiplexers with ultra-low switch charge injection, low channel capacitance, and low leakage for superior switching performance. The DG506B features 16 single-ended channels, while the DG507B offers dual 8-channel differential inputs. Both support single or dual supply voltages up to 44 V, with an extended temperature range of -40°C to +125°C. These devices are ideal for high-speed data acquisition, signal routing, and instrumentation in rugged, low-power applications, providing reliable signal integrity and minimal crosstalk.
Vishay DG506BEWT1GE3 CMOS Multiplexer Specifications:
- Operation voltage: V+ to V- up to 44 V, single supply support
- Channels: 16 single-ended (DG506B), dual 8-channel differential (DG507B)
- Maximum supply voltage: 44 V
- Temperature range: -40°C to +125°C
- On-resistance: 170–450 Ω, depending on model and conditions
- Leakage current: < 50 pA in off state
- Charge injection: approximately 1 pC
- Break-before-make switching, reduces crosstalk
- Logic compatible TTL inputs, low power consumption
- Package options: SOIC-28, TSSOP-28, PLCC-28
- Maximum power dissipation varies by package, e.g., 945 mW for TSSOP
- Available in RoHS Compliant halogen-free versions
Buy the Vishay Series CMOS Multiplexer: DG506B
Order the Vishay DG506B CMOS multiplexer online today to optimize your high-speed data acquisition, signal routing, and instrumentation applications. With low charge injection, minimal crosstalk, and extended temperature range, it provides precise, reliable performance across rugged environments. Suitable for battery-powered and remote systems, this device ensures high integrity of analog signals with low leakage and on-resistance. Get your DG506B now to enhance your electronic system’s switching capabilities and boost overall efficiency and accuracy.
Buy Vishay DG506B now and experience unmatched reliability and performance in signal switching and data acquisition systems.
Frequently Asked Questions
Where can I buy Vishay DG506BEWT1GE3?
You can click on the BUY or RFQ button to purchase DG506BEWT1GE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part DG506BEWT1GE3?
You can download the DG506BEWT1GE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of DG506BEWT1GE3?
Vishay
