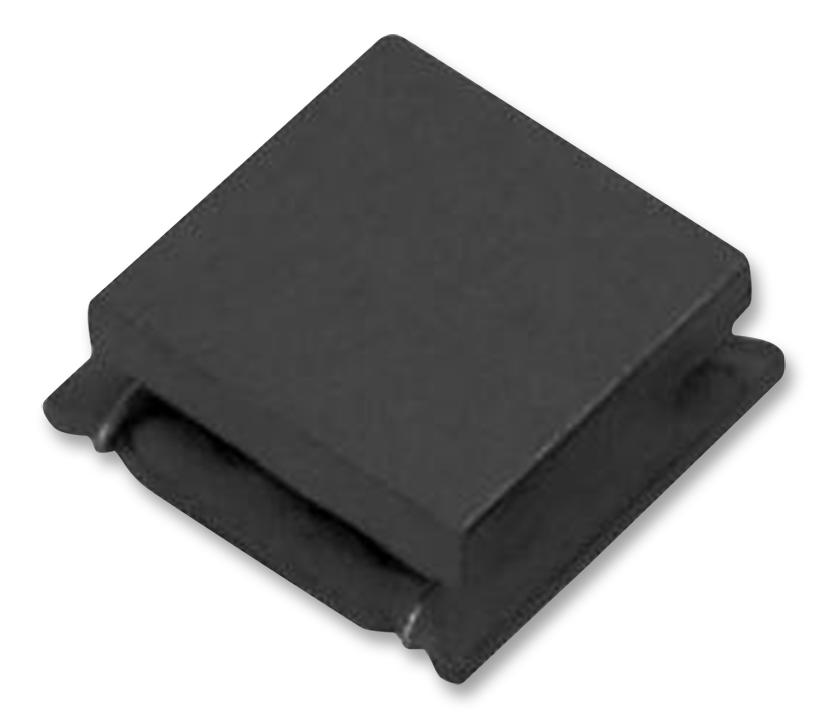

Vishay IFSC0806AZER4R7M01 high-current inductor
The IFSC-0806AZ-01 is a high-current, shielded low-profile inductor suitable for power supply circuits such as DC/DC converters, FPGA power rails, and portable electronics. With a frequency range up to 5 MHz, it handles transient spikes effectively and operates reliably at temperatures from -55°C to +125°C. Its compact size and high saturation current make it ideal for designs requiring space-efficient, durable inductors with low DCR and high saturation current, ensuring stable performance in demanding industrial and consumer applications.
Vishay IFSC0806AZER4R7M01 high-current inductor Specifications:
- Inductance Values: 0.47 μH, 1.0 μH, 1.5 μH, 2.2 μH, 3.3 μH, 4.7 μH, 6.8 μH, 10 μH, 22 μH
- Inductance Tolerance: Typically ±20%
- Frequency Range: Up to 5.0 MHz
- Operating Temperature: -55°C to +125°C
- Saturation Current: Up to 260 mA (typical 49 mA for 0.47 μH), with max currents reaching 256 mA
- Shielded, Low Profile: Dimensions approximately 0.079 x 0.024 inches (2.0 x 0.6 mm)
- Material: Ferrite core with copper wire winding
- Standards: RoHS compliant, Pb-free package
- Application Areas: Power supply modules, portable electronics, FPGA power rails, high-current DC/DC converters
Buy the Vishay IFSC-0806AZ-01 – Reliable Inductor for Industrial Applications
Purchase the Vishay IFSC-0806AZ-01 inductor online today and enjoy reliable power performance in compact sizes. Designed for high current handling and stability, this shielded inductor is perfect for industrial, portable, and high-frequency applications. Its RoHS-compliant, Pb-free design ensures environmentally friendly operation. Whether you're developing DC/DC converters or FPGA power supplies, this inductor offers excellent transient response and thermal stability. Buy online now to enhance your electronics project with a trusted, high-quality component that provides durability, efficiency, and space savings.
Order your Vishay Series IFSC-0806AZ-01 high-current inductor today and ensure your power modules achieve dependable, space-efficient performance.
Frequently Asked Questions
Where can I buy Vishay IFSC0806AZER4R7M01?
You can click on the BUY or RFQ button to purchase IFSC0806AZER4R7M01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IFSC0806AZER4R7M01?
You can download the IFSC0806AZER4R7M01 datasheet or visit the Vishay website for support.
Who is the manufacturer of IFSC0806AZER4R7M01?
Vishay
