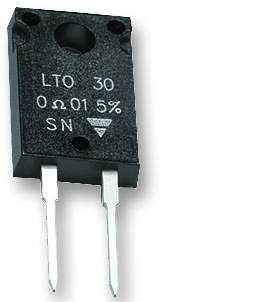

Vishay LTO030F4R700JTE3 Power Resistor
The Vishay LTO 30 power resistor features thick film technology, rated at 30 W at 25°C with a compact TO-220 package for easy mounting. It offers a broad resistance range from 0.010 Q to 550 kQ, non-inductive construction, and ceramic mounting. Designed for high power applications, it withstands temperatures from -55°C to +155°C, and includes tinned copper connections. It is compliant with RoHS regulations and features robust mechanical and environmental specifications, making it suitable for industrial and electronic device applications.
Vishay LTO030F4R700JTE3 Power Resistor Specifications:
- Power Rating: 30 W at + 25 °C (case temperature)
- Resistance Range: 0.010 Q to 550 kQ
- Temperature Range: -55 °C to +155 °C
- Thermal Resistance: 4.2 °C/W (example calculation)
- Case: TO-220 package
- Connections: Tinned copper
- Material: Alumina substrate
- Dissipation: Adheres to standards with heatsink mounting
- Dielectric Strength: 1500 Vas for 1 min
- Humidity Resistance: 103 B condition, D
- Climatic Category: 55/155/56
- Weight: Max 2g
- Flammability: UL 94V-0
- Inductance: <0.1 pH
- Insulation Resistance: 2x10^9 Ω
- Overload Voltage: Max 750 V
- Vibration & Shock: Meets MIL STD 202 standards
Buy the Vishay Series LTO Power Resistor 30W: Reliable Thermal Performance Part Number LTO030F4R700JTE3
Purchase the Vishay LTO 30 high-power resistor online today for your industrial, electronic, or manufacturing projects. Featuring thick film technology and a compact TO-220 package, it delivers 30 W at 25°C and a resistance range up to 550 kQ. Its robust design withstands temperatures from -55°C to 155°C, ensures high dielectric strength, and complies with RoHS standards. Whether for heat dissipation, precise current control, or power management, this resistor provides reliability, durability, and easy integration into your systems. Shop now and enhance your project’s performance with Vishay quality.
Order your Vishay SeriesLTO 30 power resistor today and give your projects the dependable thermal and electrical performance they deserve.
