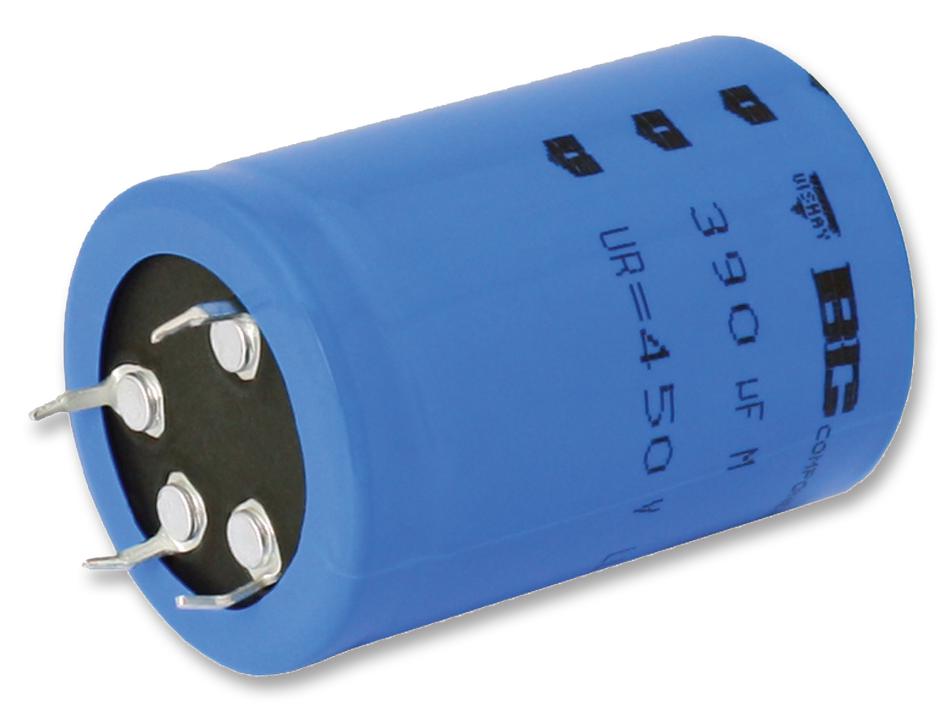

Vishay MAL209527102E3 Power Aluminum Capacitor
These long-life aluminum electrolytic power capacitors are designed for high-reliability applications such as telecommunication, industrial systems, and renewable energy converters. Operating at temperatures up to 85°C, they feature a large capacitance range from 390 UF to 2200 UF, rated voltage up to 450 V, and a lifespan of 10,000 hours at 85°C. Their four-terminal snap-in construction ensures stable mounting, low ESR, and high ripple current capability, making them ideal for smoothing, filtering, and pulse energy storage in power supplies and energy conversion systems.
Vishay MAL209527102E3 Power Aluminum Capacitor Specifications:
- Nominal Capacitance Range: 390 UF to 2200 UF
- Rated Voltage Range: 350 V to 450 V
- Temperature Range: -40°C to +85°C
- Useful Life: 10,000 hours at 85°C, 400,000 hours at 40°C
- Physical Dimensions: Case sizes from 35 x 50 mm to 45 x 100 mm
- Case Material: RoHS compliant aluminum case, insulated with blue sleeve
- Design: Four-terminal snap-in with pressure relief on the side
- Leakage Current after 5 minutes at U_r: < 0.002 Ca x Un + 4 pA
- Equivalent Series Resistance (ESR): max. values specified at 100 Hz
- Maximum Ripple Current: Based on specific capacitance and temperature
- Durability: Endurance tested for 3000 hours at 85°C, with a useful life of 10,000 hours
- Climatic Category: IEC 60068 40/085/56
- Certifications: RoHS compliant, suitable for industrial applications
- Electrical Data: Max. leakage current, reverse voltage, and surge voltage ratings provided
Buy the Buy Vishay BCcomponents Power Long Life Aluminum Electrolytic Capacitors Part Number MAL209527102E3 Online
Enhance your electronic systems by purchasing the Vishay BCcomponents Power Aluminum Capacitor online. Designed for long-lasting performance in demanding environments, this capacitor offers a high lifespan of 10,000 hours at 85°C, a wide capacitance range from 390 UF to 2200 UF, and rated voltages up to 450 V. Its four-terminal snap-in design ensures stability and easy installation. Ideal for telecommunication, industrial, renewable energy, and switching power supplies, it provides low ESR and high ripple current capabilities for reliable operation.
Buy Vishay BCcomponents MAL209527102E3 now and experience unmatched reliability and performance in your power supply and energy storage applications.
Frequently Asked Questions
Where can I buy Vishay MAL209527102E3?
You can click on the BUY or RFQ button to purchase MAL209527102E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL209527102E3?
You can download the MAL209527102E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL209527102E3?
Vishay
