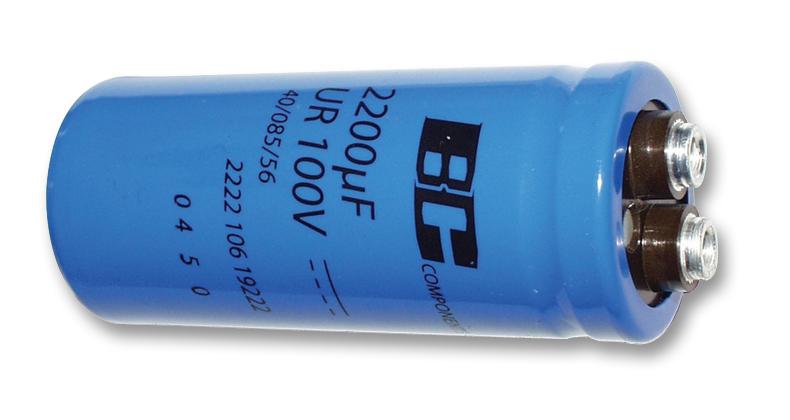

Vishay MAL210617333E3 Aluminum Capacitor
Vishay BCcomponents 106 PED-ST series aluminum electrolytic capacitors feature a cylindrical aluminum case with screw terminals, high reliability, and extremely low ESR and ESL. Designed for long service life of 20,000 hours at 85°C, these capacitors offer superb shock and vibration resistance, pressure relief in sealing, charge and discharge proof operation, and RoHS compliance. Ideal for smoothing, filtering, power supplies, and energy storage in industrial, telecommunications, and computer systems, they are available in various sizes, voltages, and capacitance ranges up to 330,000 μF.
Vishay MAL210617333E3 Aluminum Capacitor Specifications:
- Nominal case size: 35 x 60 mm to 90 x 220 mm
- Rated capacitance range: 1000 HF to 330 000 LF
- Tolerance on Cr: -10% to +30%
- Rated voltage range: 25 V to 100 V
- Category temperature range: -40°C to +85°C
- Endurance test at 85°C: 8000 hours
- Useful life at 85°C: 20,000 hours
- Shelf life at 0 V, 85°C: 500 hours
- Climatic category: IEC 60068 40/085/56
- Maximum permissible torque: 2 Nm (ST), 2.6 Nm (STB)
- Maximum ESR at 100 Hz: 0.24 to 3.76 ohms depending on size and capacitance
- Case materials: Cylindrical aluminum with blue insulation sleeve
- Impedance at 20 kHz: Max. values range from 15 to 22 ohms depending on size
- Pressure relief sealing, charge/discharge proof, RoHS compliant.
Buy the Vishay Series 106 PED-ST Aluminum Capacitor: MAL210617333E3
Order the Vishay 106 PED-ST aluminum electrolytic capacitor online today and enjoy superior quality for power supply smoothing, filtering, and energy storage. These capacitors are designed for long service life of 20,000 hours at 85°C, with low ESR and ESL for high efficiency. Featuring cylindrical aluminum cases with screw terminals, they are suitable for industrial, telecommunications, and computer applications. With RoHS compliance, pressure relief, and charge-proof operation, buying online guarantees quick delivery and trusted, durable components for your projects.
Get Vishay 106 PED-ST aluminum electrolytic capacitor today—built for high reliability, low ESR, and long-lasting performance in power systems.
Frequently Asked Questions
Where can I buy Vishay MAL210617333E3?
You can click on the BUY or RFQ button to purchase MAL210617333E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL210617333E3?
You can download the MAL210617333E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL210617333E3?
Vishay
