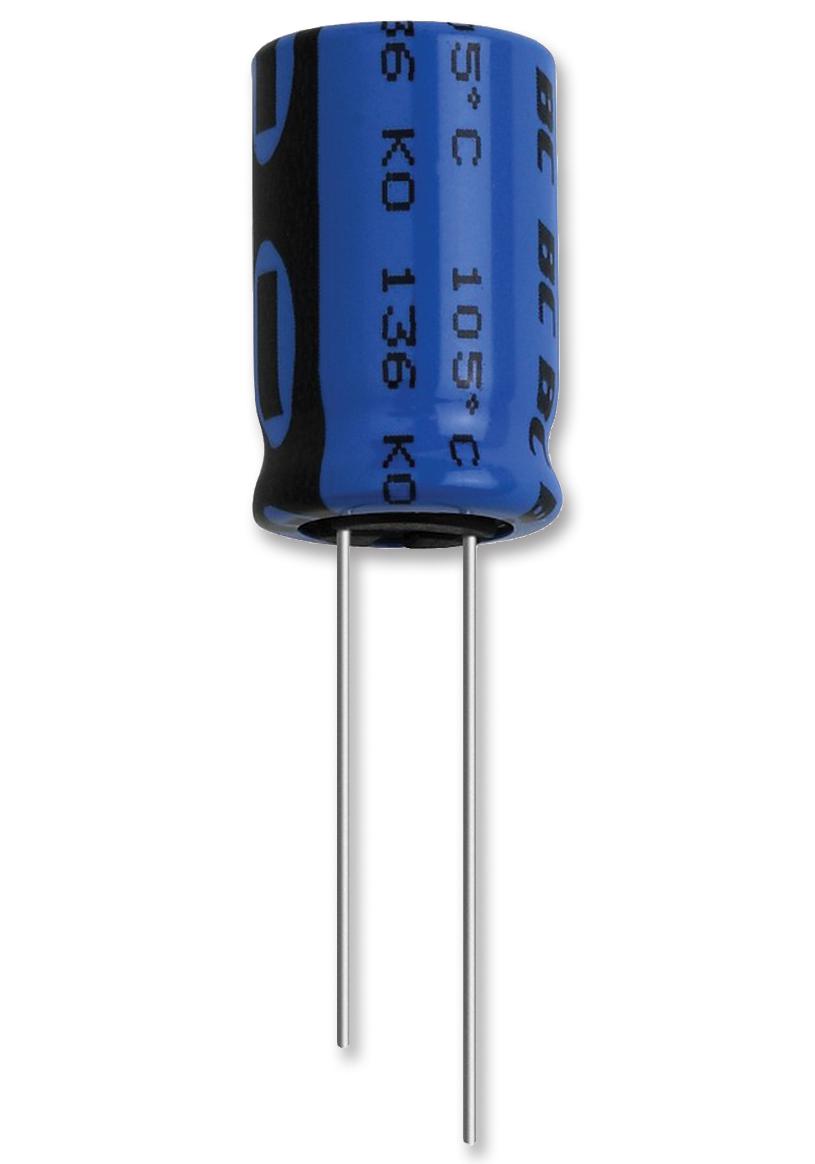

Vishay MAL213638221E3 Aluminum Electrolytic Capacitors
Vishay BCcomponents aluminum electrolytic capacitors are characterized by very low impedance and ESR, long useful life of up to 10,000 hours at 105°C, and high reliability. These polarized, non-solid electrolyte capacitors feature radial leads, cylindrical aluminum cases with pressure relief, and a blue insulating sleeve. They are suitable for power supplies, filtering, smoothing, and buffering in industrial, telecommunications, and audio-video equipment, offering excellent ripple current capacity, charge/discharge proofing, and RoHS compliance for versatile electronic applications.
Vishay MAL213638221E3 Aluminum Electrolytic Capacitors Specifications:
- Nominal case sizes: 10 x 12 mm to 18 x 35 mm
- Rated capacitance: 22 UF to 10,000 UF
- Rated voltage: 10 V to 100 V
- Category temperature range: -55°C to +105°C
- Endurance: 4000 h to 10,000 h at 105°C depending on case size
- Useful life at 105°C: Up to 10,000 hours
- Shelf life at 0 V, 105°C: 1000 h
- Material: Aluminum case with pressure relief, blue sleeve insulation
- Ripple current capability: Excellent, specific to case size
- Imp. at 100 kHz: Values vary by case size and voltage, e.g., 39 Ω to 75 Ω
- Max. ESR: Dependent on temperature and frequency, typically 0.16 Ω at 20°C
- Max. impedance at 100 kHz: Varies with capacitance, e.g., 45Ω to 350Ω
- Dimensions include length and diameter per size, pressure relief feature included
- RoHS compliant, charge/discharge proof, high reliability
Buy the Buy Vishay BCcomponents Aluminum Electrolytic Capacitors Part Number MAL213638221E3 Online
Enhance your electronic projects with Vishay BCcomponents aluminum electrolytic capacitors, offering low impedance, extended lifespan up to 10,000 hours at 105°C, and high ripple current capacity. Ideal for power supply filtering, smoothing, and buffering in industrial, telecommunications, and audio-video applications. These polarized, cylindrical aluminum case capacitors feature pressure relief and blue insulation sleeves. Their RoHS compliance and charge/discharge proof features make them a trusted choice for high-reliability electronic systems. Order online now for fast delivery and proven quality.
Order your Vishay Series136 MAL213638221E3 today and equip your power supplies with highly reliable aluminum electrolytic capacitors designed for demanding environments.
Frequently Asked Questions
Where can I buy Vishay MAL213638221E3?
You can click on the BUY or RFQ button to purchase MAL213638221E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL213638221E3?
You can download the MAL213638221E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL213638221E3?
Vishay
