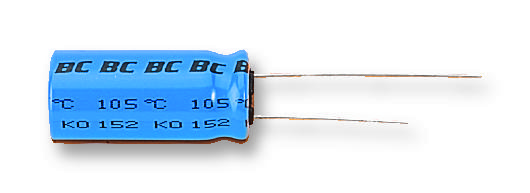

Vishay MAL224650222E3 Aluminum Electrolytic Capacitor
This high-temperature aluminum electrolytic capacitor features radial leads, cylindrical aluminum case, and insulated with a blue PET sleeve, offering long life, high stability, and excellent ripple current capacity. Designed for power supplies and filtering applications in industrial, automotive, telecommunication, and military sectors, it provides a useful life of up to 6000 hours at 125°C. It’s RoHS compliant, AEC-Q200 qualified, vibration resistant up to 50 g, and ideal for smoothing, filtering, and buffering circuits with reliable performance over extended periods.
Vishay MAL224650222E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 16x20 to 18x35 mm
- Rated capacitance: 390uF to 6800uF
- Tolerance: ±20%
- Voltage range: 16V to 63V
- Temperature range: -55°C to +125°C
- Endurance: 3000h to 5000h at 125°C, useful life 4000h to 6000h at 125°C
- RoHS compliant, AEC-Q200 qualified
- Ripple current capability: High ripple current at 100 kHz, 125°C
- Vibration resistance: Up to 50 g
- Insulation: Blue PET sleeve, cylindrical aluminum case
- Leakage current: ≤0.01 Cx at 2 min at Up
- Impedance: Max at 100 kHz, specified in datasheet
- Dissipation factor: Max at 100 Hz
Buy the Buy Vishay Aluminum Electrolytic Capacitor Part Number MAL224650222E3 Online
Purchase the Vishay aluminum electrolytic capacitor MAL224650222E3 online today. Engineered for high temperature endurance, low impedance, and vibration resistance, this capacitor is ideal for power supplies, filtering, and buffering applications in industrial, automotive, and telecommunications sectors. With a lifespan of up to 6000 hours at 125°C, it ensures long-term reliability and stable performance. Its radial design, cylindrical aluminum case, and RoHS compliance make it a perfect choice for demanding electronic circuits requiring dependable and durable components.
Get Vishay MAL224650222E3 today—built for high temperature stability, long-lasting durability, and reliable filtering in industrial applications.
Frequently Asked Questions
Where can I buy Vishay MAL224650222E3?
You can click on the BUY or RFQ button to purchase MAL224650222E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL224650222E3?
You can download the MAL224650222E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL224650222E3?
Vishay
